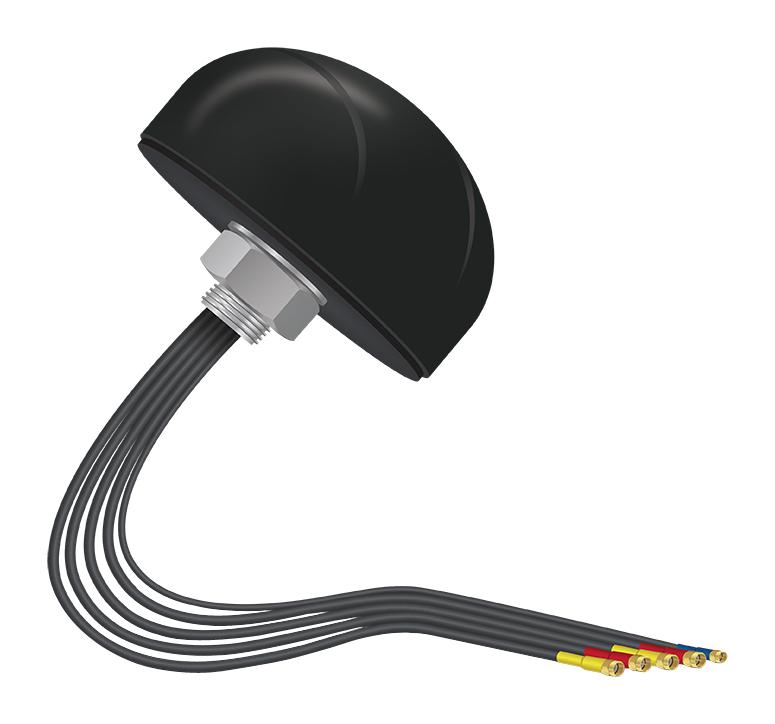

KYOCERA AVX X1005324LWS5SX10A2 External Multi-Band Antenna
Ethertronics' 5-in-1 external antenna is designed for high performance LTE MIMO, GNSS, and WiFi applications across multiple frequency bands including 698-960 MHz, 1710-2170 MHz, and 2300-2690 MHz. It supports GPS, GLONASS, and WiFi MIMO with peak gains up to 4.9 dBi and efficiencies over 60%. The antenna's robust construction features a waterproof IPX7 rating, operating temperature from -40°C to +85°C, and compact dimensions of 141.98 mm in diameter and 63.5 mm in height. It enables faster deployment, lower costs, and optimal signal quality for IoT, healthcare, automotive, and digital solutions.
KYOCERA AVX X1005324LWS5SX10A2 External Multi-Band Antenna Specifications:
- Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2690 MHz, 2400-2485 MHz, 5150-5825 MHz
- Peak Gain: Up to 4.9 dBi across bands
- Efficiency: Over 60% in several frequency ranges
- VSWR: Max 2.0:1 in relevant bands
- Impedance: 50Ω
- Dimensions: Diameter 141.98 mm, Height 63.5 mm
- Connector Type: SMA(M), RG-174 GNSS, RP-SMA(M) WiFi
- Waterproof Rating: IPX7
- Operating Temperature: -40°C to +85°C
- Housing Material & Color: PC + ABS (Black)
- Weight: 715 grams
Buy the Buy Ethertronics External Antenna Part Number X1005324-LWS5SX10A2 Online
Purchase the Ethertronics external multi-band antenna online now to enhance your connectivity solutions. This device offers high gain, efficiency, and waterproof features, ideal for IoT, healthcare, automotive, and industrial applications. Its compact size and robust construction enable quick deployment and reliable operation across diverse environments. Designed to meet stringent specifications, it reduces installation costs and accelerates time-to-market, making it the perfect choice for developers and integrators seeking a versatile and durable antenna solution for global communication needs.
Get Ethertronics external LTE GNSS WiFi antenna today—built for high performance, durability, and seamless connectivity in challenging environments.
Frequently Asked Questions
Where can I buy KYOCERA AVX X1005324LWS5SX10A2?
You can click on the BUY or RFQ button to purchase X1005324LWS5SX10A2 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part X1005324LWS5SX10A2?
You can download the X1005324LWS5SX10A2 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of X1005324LWS5SX10A2?
KYOCERA AVX
