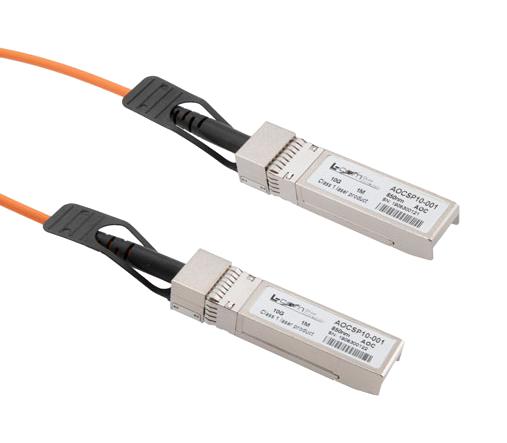

L-COM AOCSP10020 Active Optical Cable
The AOCSP10-001 is an active optical cable designed for 10 Gigabit Ethernet links, with a 1-meter multimode ribbon fiber cable, supporting data rates up to 11.1Gbps over lengths up to 100 meters. It is electrically compliant with SFF-8431 and mechanically with SFF-8432 standards. Featuring high reliability with 850nm VCSEL technology, it is electrically hot-pluggable and suitable for data center intra-rack and inter-rack connections. The cable operates within 0°C to 70°C, consumes less than 1.0W per end, and supports protocols like Infiniband, Fibre Channel, and 10G Ethernet, ensuring flexibility and low power consumption for high-performance networking.
L-COM AOCSP10020 Active Optical Cable Specifications:
- Form Factor: SFP+
- Maximum Data Rate: 11.1Gbps
- Cable Lengths: 1m (also available in 3m, 5m, 7m, 10m, 50m, 100m)
- Optical Fiber Type: Multimode ribbon fiber
- Maximum Power Consumption: 1.0 W per cable end
- Operating Temperature: 0°C to 70°C
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95%
- Electrical Interface: SFF-8431 compliant, 20-pin edge connector
- Transmitter: 850nm VCSEL, Data Rate: 10.3125 Gbps
- Receiver: Differential output swing: 300-850mV
- Supply Voltage: 3.14V to 3.46V
- Operating Current: up to 300mA per end
- Connector color: Orange
- Compliance: RoHS
Buy the L-COM Series Active Optical Cable 10Gbps: AOCSP10020
Purchase the INFINITG Active Optical Cable SFP+ 10Gbps, 1 meter length, MSA compatible, for efficient, high-speed Ethernet connections. Perfect for data center intra- and inter-rack links, ensuring low latency, high reliability, and power efficiency. Supported protocols include 10G Ethernet, Infiniband, and Fibre Channel. Easy to install, electrically hot-pluggable, with a maximum link length of 100 meters, optimized for demanding networking environments. Order online today to improve your data connectivity with a durable, quality cable.
Buy INFINITG AOCSP10-001 now and experience unmatched reliability and high-speed data transfer for your data center needs.
Frequently Asked Questions
Where can I buy L-COM AOCSP10020?
You can click on the BUY or RFQ button to purchase AOCSP10020 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part AOCSP10020?
You can download the AOCSP10020 datasheet or visit the L-COM website for support.
Who is the manufacturer of AOCSP10020?
L-COM
