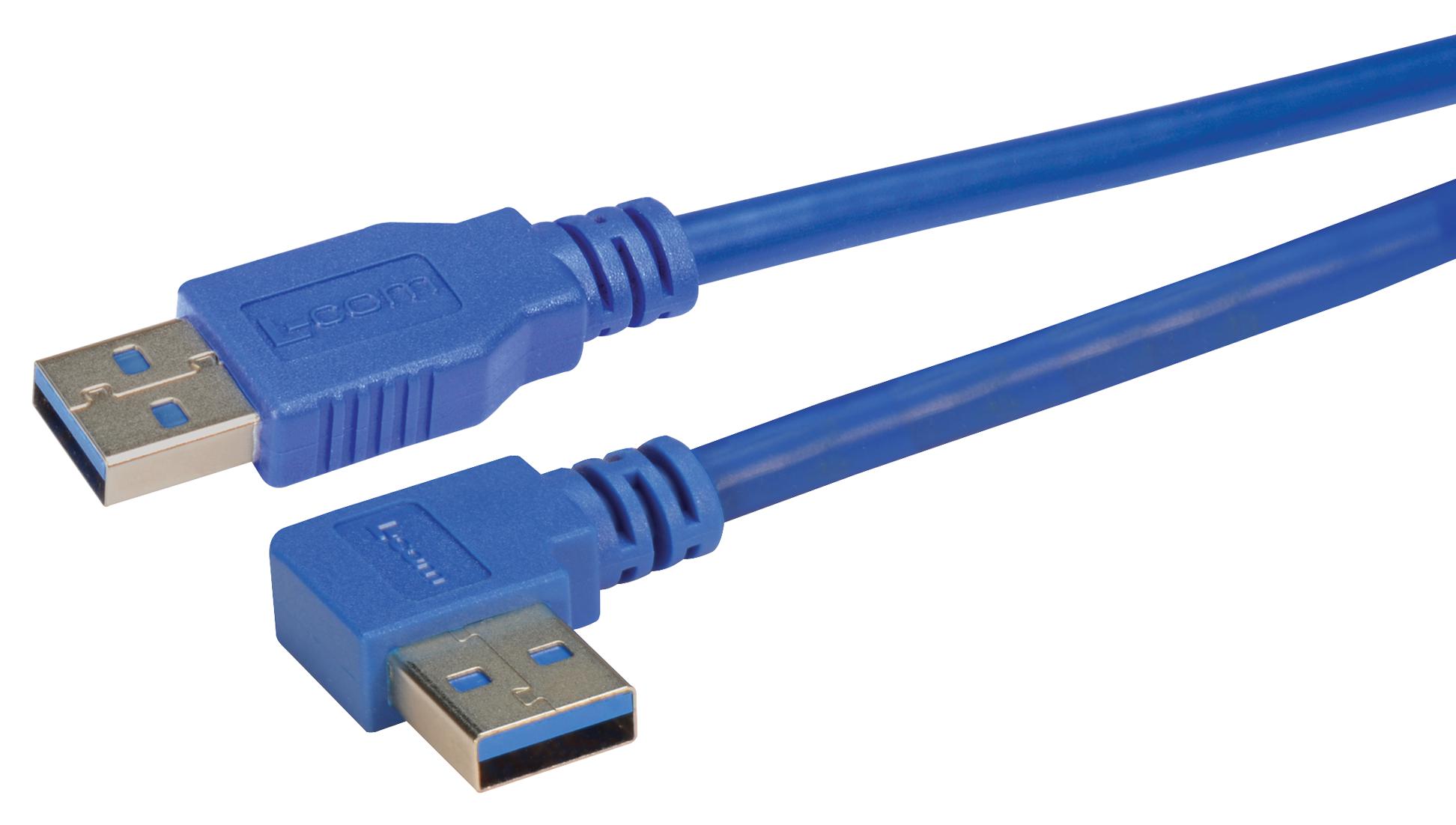

L-COM CA3A90RA05M USB Data Cable
This USB 3.0 Series A right angle plug cable assembly features high-quality PVC insulation in blue (Pantone 300C), a 30 gold contact interface, and shielded conductors adhering to USB 3.0 standards. The cable includes a twisted pair of 30 AWG conductor wires with aluminum/poly foil shield and drain wire, ensuring excellent signal integrity and minimal interference. Available in multiple lengths from 0.5 meters to 5 meters, it is designed for high-speed data transfer, compliance with UL standards, and reliable connectivity in professional and industrial applications.
L-COM CA3A90RA05M USB Data Cable Specifications:
- Connector Type: USB 3.0 Series A right angle plug
- Contacts: 30 gold-plated
- Insulation Material: PVC, blue (Pantone 300C)
- Shielding: Aluminum/poly foil with drain wire, 85-90% coverage
- Conductor Gauge: 30 AWG twisted pair
- Cable Lengths: 0.5m, 1.0m, 2.0m, 3.0m, 5.0m
- Jacket Diameter: Nominal 0.217 inches (5.5 mm)
- Minimum Bend Radius: 2.17 inches (55 mm)
- Temperature Range: Not specified but compliant with USB 3.0 standards
- Certifications: UL Style 20276, RoHS compliant
- Electrical: Meets USB 3.0 high-speed signal integrity requirements
- Testing: Continuity tested, 360° shield termination
Buy the Electronics Series USB 3.0 Cable: CA3A-90RA05M
Enhance your data transfer capabilities with this high-quality USB 3.0 Series A right angle plug cable. Featuring gold-plated contacts, excellent shielding, and durable PVC insulation in blue, it ensures fast, reliable connections in multimedia, industrial, and computing environments. Available in multiple lengths, this cable undergoes rigorous testing for continuity and shielding performance. Perfect for professional setups requiring high-speed data transfer, it is UL listed and RoHS compliant, making it a dependable choice for demanding applications.
Buy L-Com USB 3.0 Series A right angle plug cable assembly CA3A-90RA05M now and experience unmatched reliability and high-speed data transfer for your professional installations.
Frequently Asked Questions
Where can I buy L-COM CA3A90RA05M?
You can click on the BUY or RFQ button to purchase CA3A90RA05M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part CA3A90RA05M?
You can download the CA3A90RA05M datasheet or visit the L-COM website for support.
Who is the manufacturer of CA3A90RA05M?
L-COM
