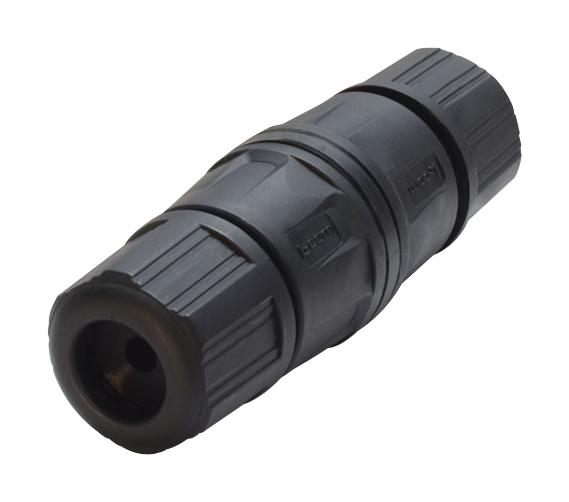

L-COM CGC6AFF Industrial RJ45 Connector
The CGC6AFF is an IP68-rated shielded RJ45 connector designed for industrial environments, offering high durability with brass shield and silicone grommets for secure cable management. Constructed with UL94V-0 rated PC plastic and UL370-rated PA66 housings, this connector supports operation from -40°C to +80°C and is immersed in water for 24 hours per test standards. Fully assembled with small and large grommets, it ensures ingress protection and reliable connectivity in industrial applications, complying with relevant standards like RoHS.
L-COM CGC6AFF Industrial RJ45 Connector Specifications:
- Ingress Protection Rating: IP68 when fully assembled to cable
- Operating Temperature: -40°C to +80°C
- Material: Brass shield, Silicone grommets, PC and UL66-rated PA66 housings
- Cable Gland: PA66 (FR370), UL94V-0, Black
- Grommets: Silicone, Black
- Shield Material: Nickel Plated
- Connector Type: Shielded RJ45 8P8C
- Dimensional Tolerance: Overall cable length ±0.05 inches
- Maximum Panel Thickness: 0.175 inches (4.5 mm)
- Environmental Testing: Immersed in 1 meter water for 24 hours, tested per L-COM specifications
- Test Standards: L-COM specification LTP-009 (water immersion), LTP-011 (coupler testing)
Buy the L-COM CGC6AFF – Reliable Shielded RJ45 for Industrial Applications
Order the L-COM CGC6AFF shielded RJ45 connector online today and experience unmatched durability with IP68 sealing, brass shielding, and silicone grommets. Designed for industrial networking and harsh environments, it ensures dependable data transfer and ingress protection. Fully assembled with small and large grommets, supports operation from -40°C to +80°C, and meets rigorous testing standards including water immersion. Perfect for telecom, automation, and industrial applications, this connector offers long-lasting performance and easy installation for professional installers and engineers alike.
Get L-COM CGC6AFF today—built for industrial durability and secure data transmission in tough environments.
Frequently Asked Questions
Where can I buy L-COM CGC6AFF?
You can click on the BUY or RFQ button to purchase CGC6AFF from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part CGC6AFF?
You can download the CGC6AFF datasheet or visit the L-COM website for support.
Who is the manufacturer of CGC6AFF?
L-COM
