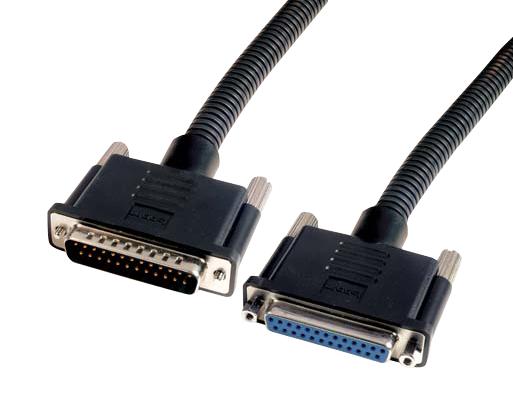

L-COM CSPL25MF10 Shielded D-Sub Cable Assembly
L-Com's ready-made plastic armored D-Sub cable assemblies feature a durable, crush-resistant plastic jacket over premium shielded cable with braid and foil shielding to provide effective protection against electromagnetic interference (EMI) and radio frequency interference (RFI). The assembly includes a custom steel internal enclosure within the backshell mold, complemented by a plastic coupling nut for added strength. With a crush resistance of 800 PSI, these assemblies are designed for applications requiring high durability. The foil and braid shielding ensures maximum EMI/RFI protection, while the gold-plated contacts offer reliable connections over multiple mating cycles. Suitable for use in computer hardware, peripherals, data transmission, imaging, industrial, sound and video applications.
L-COM CSPL25MF10 Shielded D-Sub Cable Assembly Specifications:
- Connector: Male 25-Pin D-Sub with plastic armor and internal metal shield
- Cable Type: Shielded, PVC jacket, 25 conductors, 26 AWG, UL Style 2919, Type CL2
- Shielding: Braid and foil for maximum EMI/RFI protection
- Material: PVC jacket, gold-plated contacts, steel internal enclosure
- Crush Resistance: 800 PSI
- Length Options: Ranging from 0.76 inches (2.5 cm) up to 50 inches (1270 mm)
- Color Coding: Black, brown, red, orange, yellow, green, gray, white, pink, light green, black/white, brown/white, red/white, green/white, blue/white, violet/white, red/black, orange/black, yellow/black, green/black, gray/black
- Compliance: CE2011/65/EU RoHS Directive
- Connectors: Gold-plated contacts, plastic coupling nut, internal steel enclosure
- Assembly Testing: Continuity tested and individually packaged as per specifications
Buy the L-Com CSPL25MF10 – Reliable Shielded D-Sub Cable for Industrial Applications
Purchase the L-Com CSPL25MF10 shielded D-Sub cable assembly online today and enjoy dependable, high-performance connectivity for industrial, data, and imaging applications. Featuring a durable plastic armor with high crush resistance of 800 PSI, gold-plated contacts for reliable connections, and advanced EMI/RFI shielding, this cable assembly is perfect for demanding environments. Each assembly is individually tested for continuity, conforms to RoHS standards, and is available in various lengths. Get your high-quality, shielded D-Sub connector assembly now for seamless integration and robust performance in your critical projects.
Order your L-Com CSPL25MF10 series shielded D-Sub cable assembly today and ensure secure, high-quality data transmission in your industrial projects.
Frequently Asked Questions
Where can I buy L-COM CSPL25MF10?
You can click on the BUY or RFQ button to purchase CSPL25MF10 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part CSPL25MF10?
You can download the CSPL25MF10 datasheet or visit the L-COM website for support.
Who is the manufacturer of CSPL25MF10?
L-COM
