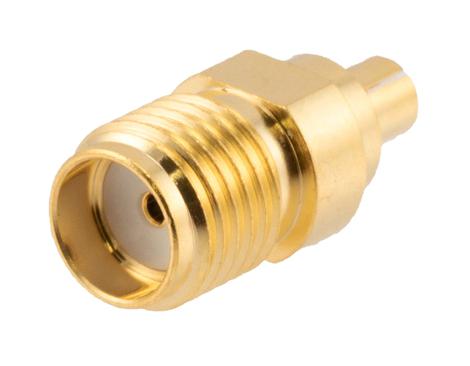

L-COM LCAD30003 RF Coaxial Adapter
The coaxial adapter from L-com features an SMA female connector and a UMCX plug, operating up to 6 GHz with a maximum VSWR of 1.3:1. Made from tri-metal with gold plating, it provides reliable RF connections suitable for high-frequency applications such as microwave and wireless systems. Its straight configuration and compact size make it ideal for PCB mounting, micro coaxial connections, and miniature RF setups. The adapter supports up to 100 Vrms, with excellent dielectric withstand and low resistance, ensuring dependable performance in demanding environments.
L-COM LCAD30003 RF Coaxial Adapter Specifications:
- Frequency Range: up to 6 GHz
- VSWR: 1.3:1 maximum
- Impedance: 50 Ohm
- Maximum Operating Voltage: 100 Vrms
- Dielectric Withstanding Voltage: 200 Vrms
- Inner Conductor Resistance: 3 mOhms
- Outer Conductor Resistance: 2 mOhms
- Insulation Resistance: 5,000 MOhms
- Temperature Range: -40°C to +90°C
- Length: 0.55 inches (13.97 mm)
- Width: 0.26 inches (6.6 mm)
- Material: Brass, Phosphor Bronze, Beryllium Copper, PTFE insulation
- Connection Types: SMA Female and UMCX Plug
- Gold Plated Contacts and Outer Conductors
Buy the L-com LCAD30003 – Reliable RF Coaxial Adapter for Industrial Applications
Enhance your RF setup with the L-com RF Coaxial Adapter, featuring SMA female and UMCX plug connectors, supporting up to 6 GHz with low VSWR. Made from durable materials, gold-plated for optimal conductivity, it ensures reliable connections in demanding environments. Its compact, straight design makes it perfect for PCB, micro coax, and miniature RF applications. Stocked for immediate shipment, this adapter is essential for professional-grade wireless, microwave, and communication systems requiring premium quality and dependable performance. Invest in quality today.
Buy L-com LCAD30003 now and experience unmatched reliability and high-frequency performance for your RF and microwave systems.
Frequently Asked Questions
Where can I buy L-COM LCAD30003?
You can click on the BUY or RFQ button to purchase LCAD30003 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAD30003?
You can download the LCAD30003 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAD30003?
L-COM
