L-COM LCAT100502 RF Attenuator
The L-com 2W/2 dB Fixed Attenuator is designed for high-frequency applications up to 18 GHz, featuring stainless steel bodies and SMA connectors. It offers a nominal attenuation of 2 dB with an accuracy of ±0.5 dB, and a VSWR of 1.3:1, ensuring minimal signal reflection. Capable of handling up to 2 Watts of continuous power and peak power of 500 Watts (5us pulse), it is suitable for instrumentation, testing, and RF measurement setups. Its compact size and robust construction make it ideal for diverse professional RF systems.
L-COM LCAT100502 RF Attenuator Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Attenuation: 2 dB
- Attenuation Accuracy: ±0.5 dB
- VSWR: 1.3:1
- Input Power (CW): 2 Watts, Peak: 500 Watts (5us pulse)
- Size: Length 0.85 in [21.59 mm], Diameter 0.312 in [7.92 mm]
- Body Material: Stainless Steel
- Connectors: SMA Male to SMA Female
- Operating Temperature Range: -55°C to +125°C
- Coupling Nut Material: Stainless Steel
- Contact Material: Brass, Gold Plated
- Compliance: RoHS
- Weight: 0.0088 lbs [3.99 g]

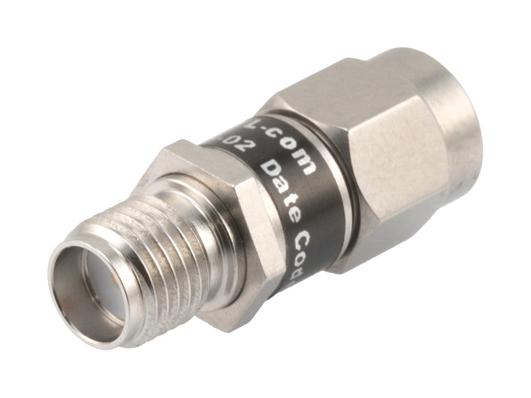

Buy the Buy Infinite Electronics RF Fixed Attenuator Part Number LCAT1005-02 Online
Order the Infinite Electronics RF Attenuator with part number LCAT1005-02 today. Designed for high-frequency applications up to 18 GHz, it features stainless steel construction, SMA connectors, and a power handling capacity of 2 Watts. Its compact size and precise 2 dB attenuation make it ideal for RF measurement, testing, and instrumentation. Durable and RoHS compliant, this attenuator ensures reliable signal reduction with minimal VSWR, providing stability for professional RF system applications. Perfect for labs, production, and field testing.
Get Infinite Electronics LCAT1005-02 today—built for precision and long-lasting durability in RF testing and instrumentation.
Frequently Asked Questions
Where can I buy L-COM LCAT100502?
You can click on the BUY or RFQ button to purchase LCAT100502 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAT100502?
You can download the LCAT100502 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAT100502?
L-COM
