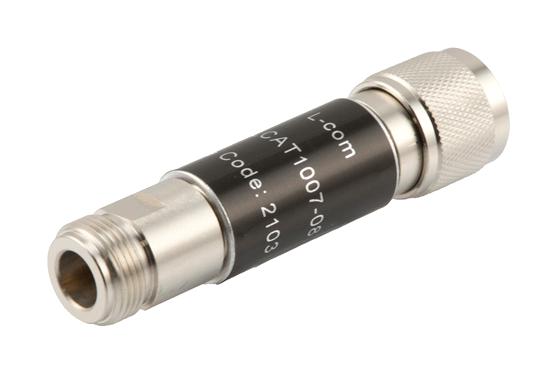

L-COM LCAT100708 Fixed RF Attenuator
The L-com fixed attenuator rated at 8 dB provides precise signal attenuation across a broad frequency range up to 18 GHz. Equipped with N male to N female connectors, it features a brass nickel-plated body for durability and excellent conductivity. This RF component is designed for applications including production systems, instrumentation, prototyping, and precision measurements, offering high power handling up to 2W continuous and 500W peak. Its compact size and reliable performance make it ideal for impedance matching, protecting sensitive equipment, and extending measurement instrument range.
L-COM LCAT100708 Fixed RF Attenuator Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Nominal Attenuation: 8 dB
- Attenuation Accuracy: ±0.6 dB
- VSWR: <1.40:1
- Input Power: CW 2 Watts, Peak 500 Watts
- Operating Temperature Range: -55°C to +125°C
- Connector Type: N Male to N Female
- Connector Material: Brass, Gold plating (contacts), Nickel plating (coupling nut and body)
- Body Material: Brass Nickel Body
- Size: Length 3.03 in (76.96 mm), Diameter 0.787 in (19.99 mm)
- Weight: 0.176 lbs (79.83 g)
Buy the Infinite Electronics Series Fixed Attenuator: LCAT1007-08
Order the Infinite Electronics fixed RF attenuator today online and ensure reliable signal attenuation for your RF systems. This 8 dB attenuator features N male to N female connectors, a brass nickel-plated body, and a frequency range up to 18 GHz. Rated at 2W continuous power, it is suitable for precision measurements, instrumentation, and prototyping. Compact and durable, it offers high accuracy and low VSWR, providing outstanding performance in demanding RF applications. Purchase now to elevate your RF test setup with proven quality and speed.
Buy Infinite Electronics LCAT1007-08 fixed attenuator now and experience unmatched reliability and high-frequency performance up to 18 GHz.
Frequently Asked Questions
Where can I buy L-COM LCAT100708?
You can click on the BUY or RFQ button to purchase LCAT100708 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAT100708?
You can download the LCAT100708 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAT100708?
L-COM
