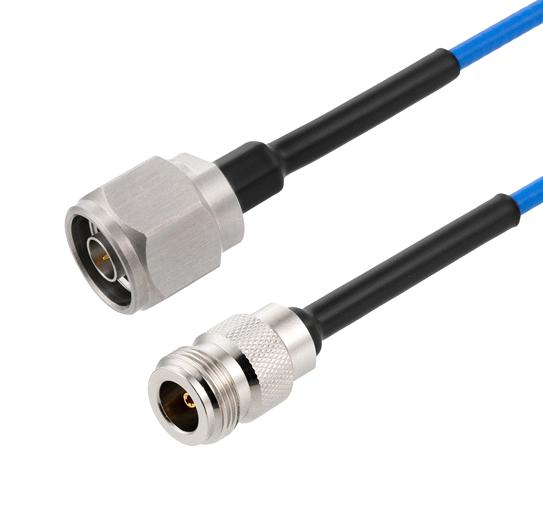

L-COM LCCA30008FT5 RF Coaxial Cable
L-com's Cable Assembly LCCA30008 is an N male to N female, 5.0 ft coaxial cable with 402SS Series construction and Heavy Duty Boot, designed for high-frequency applications up to 18 GHz. Made with durable stainless-steel connectors and double shielding, including a silver plated copper braid over a spiral strip, this flexible cable ensures superior shielding effectiveness greater than 110dB. Ideal for general purpose, laboratory, and automated test systems, it features a flexible FEP jacket, excellent impedance matching, and a robust design for reliable long-term performance in demanding environments.
L-COM LCCA30008FT5 RF Coaxial Cable Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Velocity of Propagation: 70%
- Insertion Loss (Max): 1.35 dB at 3 GHz, 2.45 dB at 10 GHz
- Capacitance: 29.4 pF/ft
- Operating Voltage: 500 Vrms
- Cable Type: 402SS Series coax
- Cable Length: 5.0 ft
- Connector Type: N Male to N Female
- Connector Material: Brass, Gold Plated
- Jacket Material: FEP, Tan
- Outer Diameter: 0.315 in (8 mm)
- Inner Conductor: Stranded Copper, Silver Plated
- Shielding: Silver Plated Copper Tape & Braid, > 110dB shielding effectiveness
- Repeated Minimum Bend Radius: 1 in (25.4 mm)
- Weight: 0.35 lbs (158.76 g)
- Operating Temperature Range: -55°C to +165°C
Buy the L-com Series 402SS Coaxial Cable: LCCA30008FT5
Purchase the L-com Series 402SS RF coaxial cable with heavy-duty boot, 5 ft length, suitable for high-frequency applications up to 18 GHz. Constructed with durable stainless steel connectors, double shielding for excellent interference protection, and a flexible FEP jacket, this cable offers reliable performance in laboratory, automation, and general-purpose environments. Its design ensures easy installation with a minimal bend radius of 1 inch. Stocked for same-day shipping, this versatile RF cable is ideal for professionals needing high-quality, durable, and flexible RF interconnects for demanding applications.
Get L-com Series 402SS coaxial cable today—built for precision with a flexible design and heavy-duty shielding to ensure long-lasting performance.
Frequently Asked Questions
Where can I buy L-COM LCCA30008FT5?
You can click on the BUY or RFQ button to purchase LCCA30008FT5 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30008FT5?
You can download the LCCA30008FT5 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30008FT5?
L-COM
