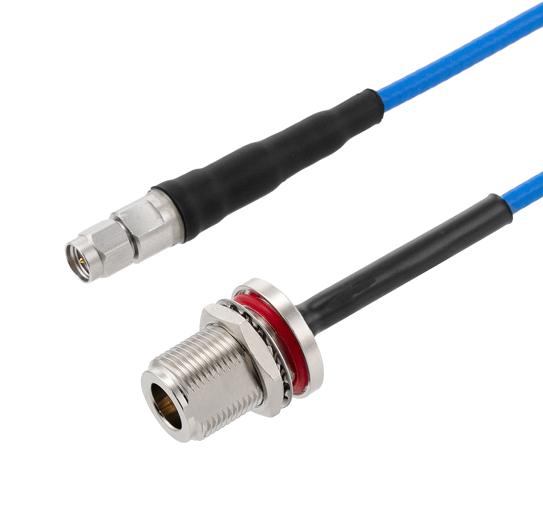

L-COM LCCA30009FT10 RF Coaxial Cable
L-com's cable assembly connects SMA male to N female bulkhead interfaces with 402SS Series coax for high-frequency applications up to 18 GHz. Featuring a heavy-duty boot, stainless steel connectors, and double shielding with silver-plated copper braid over spiral strip shielding, it offers excellent shielding effectiveness over 110dB. Designed for durability and flexibility, it suits laboratory work, RF interconnects, and automated test systems. The 10-foot cable includes a FEP jacket and supports tight bends, ensuring reliable performance in demanding environments and external enclosure connections.
L-COM LCCA30009FT10 RF Coaxial Cable Specifications:
- Frequency Range: DC to 18 GHz
- Insertion Loss: 0.03*SQRT(FGHz) dB (SMA), 0.07*SQRT(FGHz) dB (N Connector)
- Impedance: 50 Ohms
- Shielding: Double layer with silver-plated copper tape and braid, >110dB effectiveness
- Connector Material: Brass, gold and nickel plating
- Jacket Material: FEP, tan color
- Cable Type: 402SS series coax
- Cable Diameter: 0.163 in [4.14 mm]
- Length: 120 in [304.8 cm]
- Weight: 0.36 lbs [163.29 g]
- Maximum Bend Radius: 1 in [25.4 mm]
- Operating Voltage: 500 Vrms
- Velocity of Propagation: 70%
- Capacitance: 29.4 pF/ft
- Temperature Range: -55°C to +165°C
- Connectors: SMA male, N female bulkhead, brass with gold contact, MIL-STD-348A compliance
Buy the INFINITG Series RF Cable: LCCA30009FT10
Order the INFINITG RF coaxial cable with SMA male to N female bulkhead connectors, measuring 10 feet, featuring heavy-duty boot and exceptional shielding. Designed for applications up to 18 GHz, this durable cable offers flexibility in tight spaces, optimal shielding effectiveness over 110dB, and corrosion-resistant stainless steel connectors, making it perfect for lab, RF interconnects, and automated test systems. Ensure reliable high-frequency signal transmission with this high-quality assembly that ships same day, tailored to meet your professional connectivity needs.
Get INFINITG LCCA30009FT10 today—built for high-frequency performance and durable, reliable connectivity.
