L-COM LCCA30014FT2 High-Frequency RF Cable
L-com’s LCCA30014-FT2 is a low loss SMA male to TNC male cable assembly with a heavy-duty heat shrink boot using LL142 coax, measuring 2 feet in length. Designed for high-frequency applications up to 18 GHz, it features a triple shield for excellent shielding effect greater than 95dB, and a flexible impedance-matched design with a low insertion loss of approximately 0.27 dB at 18 GHz. The assembly includes durable stainless-steel connectors and a FEP jacket, making it ideal for automated test systems, antenna ranges, and laboratory use where reliability and flexibility are critical.
L-COM LCCA30014FT2 High-Frequency RF Cable Specifications:
- Frequency Range: DC to 18 GHz
- Insertion Loss: Max 0.27 dB at 18 GHz
- Impedance: 50 Ohms
- Connector 1: SMA Male, MIL-STD-348, Gold over Nickel plating
- Connector 2: TNC Male, MIL-STD-348, Gold over Nickel plating
- Cable Type: LL142 coax, tape wrapped PTFE dielectric with 80% VoP
- Shielding Effectivity: > 95 dB, triple shielded with silver plated copper tape and braid
- Outer Jacket Material: FEP, Green, with heavy duty heat shrink boot
- Cable Length: 2 feet (61 cm)
- Inner Conductor Material: Copper, Silver plated
- Jacket Diameter: 0.195 inches (4.95 mm)
- Min Bend Radius: 0.975 inches (24.77 mm)
- Operating Temperature Range: -55°C to +200°C
- Weight: Approx 0.097 lbs (44 g)

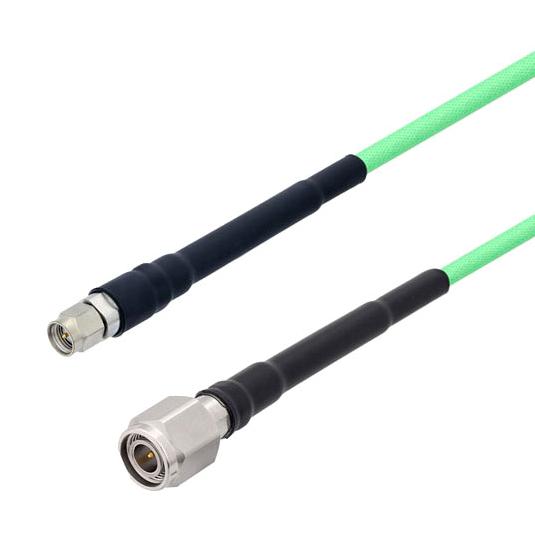

Buy the Buy Infinite Connectivity SMA to TNC Part Number LCCA30014-FT2 Online
Purchase the Infinite Connectivity SMA to TNC cable assembly online today and benefit from same-day shipping. This low-loss, high-frequency cable features a 2-foot length, triple shielding, and heavy-duty heat shrink boot, making it perfect for demanding RF applications like automated test systems and antenna ranges. With excellent shielding effectiveness over 95dB, durable stainless-steel connectors, and flexible PTFE dielectric, this reliable assembly ensures optimal signal integrity at up to 18 GHz. Enhance your RF systems with this durable and flexible cable assembly available for quick purchase and fast delivery.
Order your Infinite Connectivity SeriesLCCA30014-FT2 SMA to TNC Cable today and ensure your RF projects operate with high reliability and low loss performance.
Frequently Asked Questions
Where can I buy L-COM LCCA30014FT2?
You can click on the BUY or RFQ button to purchase LCCA30014FT2 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30014FT2?
You can download the LCCA30014FT2 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30014FT2?
L-COM
