L-COM LCCA30033FT1 RF Cable Assembly
This low loss SMA male to SMA male cable assembly features a 1 FT length with heavy-duty heat shrink boot using LL335i coax, designed for high-frequency applications up to 18 GHz. Its triple shielding provides >95dB effectiveness, ensuring excellent RF signal integrity. The flexible design with tape-wrapped PTFE dielectric offers low insertion loss, ideal for automated test systems, laboratory use, antenna range applications, and long cable runs. The stainless-steel connectors and robust booting extend the product’s durability, making it suitable for demanding RF interconnects across various industries.
L-COM LCCA30033FT1 RF Cable Assembly Specifications:
- Frequency Range: DC to 18 GHz
- Insertion Loss: Max. 0.26 dB at 18 GHz
- Impedance: 50 Ohms
- Velocity of Propagation: 83%
- Shielding Effectiveness: >95dB
- Capacitance: 25 pF/ft (82.02 pF/m)
- Cable Type: LL335i
- Connector Type: SMA Male to SMA Male
- Cable Diameter: 0.3 in [7.62 mm]
- Cable Length: 1 FT
- Inner Conductor: Solid Copper, Silver Plated
- Dielectric: Tape wrapped PTFE
- Shield Layers: Silver Plated Copper Tape, Aluminum Polyester, Silver Plated Copper Braid
- Jacket Material: FEP, Green
- Typical Weight: 0.079 lbs [35.83 g]
- Maximum Repeated Bend Radius: 1.5 in [38.1 mm]
- Operating Temperature Range: -55°C to +200°C
- Connector Material: Passivated Stainless Steel
- Connector Plating: Gold (Contact), Passivated Stainless Steel (Body & Nut)

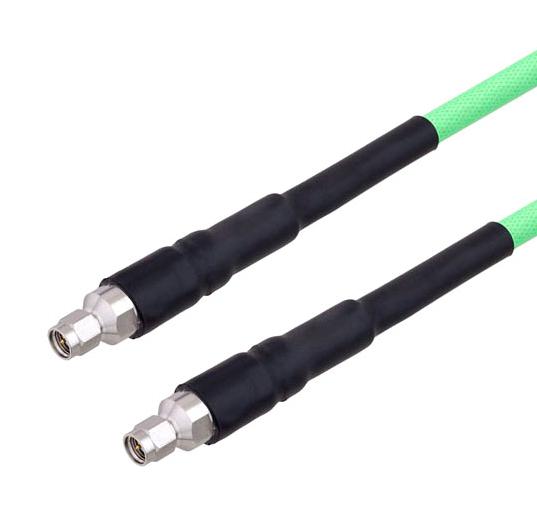

Buy the INFINITG Series SMA Cable: LCCA30033-FT1
Order the INFINITG LCCA30033-FT1 low loss SMA male to SMA male cable assembly online today. This 1 FT flexible RF cable uses LL335i coax for low insertion loss up to 18 GHz. With triple shielding >95dB, durable stainless-steel connectors, and a heavy-duty heat shrink boot, it ensures reliable performance in test systems, laboratories, and antenna setups. Ideal for long cable runs, it offers high shielding effectiveness and excellent signal integrity. Buy now for fast same-day shipping and trusted connectivity solutions.
Buy INFINITG LCCA30033-FT1 SMA cable assembly now and experience unmatched low loss performance and durability for high-frequency RF applications.
Frequently Asked Questions
Where can I buy L-COM LCCA30033FT1?
You can click on the BUY or RFQ button to purchase LCCA30033FT1 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30033FT1?
You can download the LCCA30033FT1 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30033FT1?
L-COM
