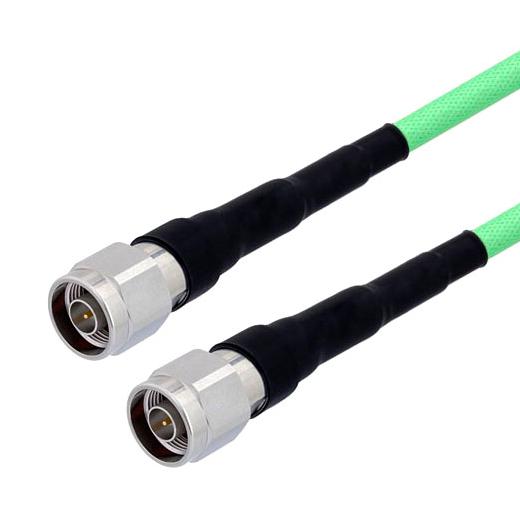

L-COM LCCA30039FT2 RF Cable Assembly
The LCCA30039-FT2 is a low loss N male to N male cable assembly featuring a 2-foot length, heavy-duty heat shrink boot, and LL335i coax with tape-wrapped PTFE dielectric for high performance. Operating up to 18 GHz, it offers exceptional shielding effectiveness over 95dB with triple-layer shielding of copper braid and tape. Suitable for general purpose, automated test systems, and antenna applications, it combines durable stainless-steel connectors with a flexible design for long cable runs and reliable RF signal transmission, ensuring minimal loss and excellent durability.
L-COM LCCA30039FT2 RF Cable Assembly Specifications:
- Frequency Range: Dc to 18 GHz
- Insertion Loss Max: 0.41 dB at 18 GHz
- VSWR: 1.35:1
- Shielding Effectiveness: > 95dB
- Impedance: 50 Ohms
- Cable Type: LL335i coaxial cable
- Inner Conductor: Solid copper with silver plating
- Dielectric: Tape wrapped PTFE with VoP of 83%
- Number of Shields: 3 layers (copper tape, copper braid, aluminum polyester)
- Jacket Material: FEP, green color
- Cable Diameter: 0.3 inches (7.62 mm)
- Cable Length: 24 inches (two feet)
- Weight: 0.139 lbs (63.05 g)
- Reinforced with heavy-duty heat shrink boot
- Connector Material: Beryllium copper, gold over nickel
- Connector Body: Passivated stainless steel
- Operating Temperature Range: -55°C to +200°C
- Connectors: N Male, with 3/4 inch hex nut, 21 in-lbs torque
Buy the INFINITG LCCA30039-FT2 – Reliable RF Cable Assembly for Industrial Applications
Order the INFINITG LCCA30039-FT2 RF cable assembly online now to benefit from same-day shipping, robust construction, and superior low-loss performance. Ideal for automated test systems, antenna setups, and laboratory applications, this 2-foot N male to N male cable boasts triple shielding with copper tape and braid for maximum RF noise suppression. Its heavy-duty heat shrink boot ensures durability under demanding conditions. Trusted for high frequency performance up to 18 GHz, this cable guarantees minimal insertion loss, excellent shielding, and long-lasting reliability, providing a perfect solution for your professional RF and signal transmission needs.
Get INFINITG LCCA30039-FT2 today—built for precision, durability, and reliable RF performance in industrial and test environments.
Frequently Asked Questions
Where can I buy L-COM LCCA30039FT2?
You can click on the BUY or RFQ button to purchase LCCA30039FT2 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30039FT2?
You can download the LCCA30039FT2 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30039FT2?
L-COM
