L-COM LCCA30042FT5 RF Cable Assembly

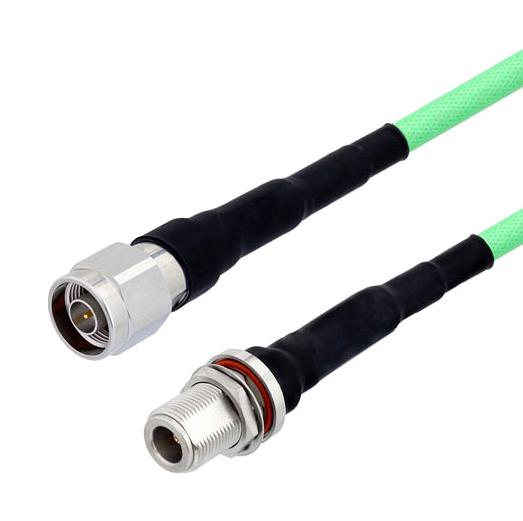

The Low Loss N Male to N Female Bulkhead Cable Assembly with Heavy Duty Heat Shrink Boot using LL335i coax is designed for high-frequency applications up to 18 GHz. It features a flexible, tape-wrapped PTFE dielectric with 83% VoP, offering minimal insertion loss and excellent shielding effectiveness greater than 95dB due to triple shielding layers. The assembly includes durable stainless-steel connectors, a heavy-duty heat shrink strain relief boot, and is ideal for automated test systems, laboratory, antenna range, and long cable runs requiring reliable RF interconnects that withstand flexure and environmental conditions.
L-COM LCCA30042FT5 RF Cable Assembly Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Insertion Loss: Max 0.38 dB at 18 GHz
- Shielding Effectiveness: > 95 dB
- Dielectric: Tape wrapped PTFE with 83% VoP
- Outer Jacket Material: FEP, Green
- Jacket Outer Diameter: 0.3 in [7.62 mm]
- Cable Length: 5 FT
- Cable Type: LL335i
- Inner Conductor: Solid Copper, Silver Plated
- Number of Shields: 3
- Shield Layer 1: Silver Plated Copper Tape
- Shield Layer 2: Aluminum Polyester
- Shield Layer 3: Silver Plated Copper Braid
- Outer Conductor Material: Copper, Silver Plated
- Connector 1: N Male Bulkhead
- Connector 2: N Female
- Connector Material: Beryllium Copper, Gold over Nickel
- Connector Certification: MIL-STD-348
- Coupling Nut Material: Passivated Stainless Steel
- Temperature Range: -55°C to +200°C
- Mechanical: Repeated Bend Radius 1.5 in [38.1 mm], Weight 0.229 lbs [103.87 g]
- Cable Assembly Diameter: 0.3 in [7.62 mm]
Buy the Buy INFINITG RF Cable Assembly Part Number LCCA30042-FT5 Online
Order the INFINITG RF Cable Assembly with part number LCCA30042-FT5 today for reliable high-frequency performance up to 18 GHz. Perfect for automated testing, laboratories, and antenna systems, this 5 ft flexible, low loss coaxial cable features triple shielding for maximum RF integrity and durability. The heavy-duty heat shrink boot enhances longevity and environmental resilience, ensuring consistent operation in demanding applications. Fast same-day shipping available for domestic and international orders, making it an ideal choice for professional RF systems and critical connectivity needs.
Get INFINITG LCCA30042-FT5 today—designed for high-frequency, flexible RF connections with durable heavy-duty boot and triple shielding.
Frequently Asked Questions
Where can I buy L-COM LCCA30042FT5?
You can click on the BUY or RFQ button to purchase LCCA30042FT5 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30042FT5?
You can download the LCCA30042FT5 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30042FT5?
L-COM
