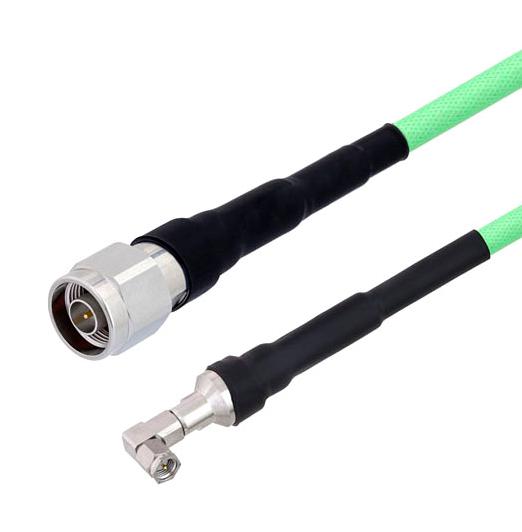

L-COM LCCA30046FT1 RF Cable Assembly
The Low Loss N Male to SMA Male Right Angle Cable Assembly by L-com features heavy-duty heat shrink booting and high-quality LL335i coax. Designed for applications requiring flexible RF interconnects, it operates up to 18 GHz with excellent shielding effectiveness over 95dB. With a durable stainless-steel connector and a tape wrapped PTFE dielectric with 83% VoP, this 1-foot cable provides low insertion loss suitable for automated test systems, antennas, and laboratory uses. Its compact design facilitates connections in tight spaces, ensuring reliable performance in demanding environments.
L-COM LCCA30046FT1 RF Cable Assembly Specifications:
- Frequency Range: 18 GHz
- VSWR: 1.35:1
- Velocity of Propagation: 83%
- RF Shielding: >95dB
- Capacitance: 25 pF/ft
- Impedance: 50 Ohms
- Cable Type: LL335i
- Connector 1: N Male
- Connector 2: SMA Male Right Angle
- Body Material: Passivated Stainless Steel
- Contact Material and Plating: Beryllium Copper, Gold over Nickel
- Dielectric Type: PTFE
- Jacket Material: FEP, Green
- Jacket Diameter: 0.3 in
- Cable Length: 1 FT
- Outer Diameter: 0.3 in
- Maximum Bend Radius: 1.5 in
- Operating Temperature: -55°C to +200°C
- Shielding Layers: Silver plated copper tape and braid
- Weight: 0.079 lbs
Buy the Buy INFINITG Low Loss N Male to SMA Male Right Angle Cable Part Number LCCA30046-FT1 Online
Purchase the INFINITG Low Loss N Male to SMA Male Right Angle Cable Assembly with heavy-duty heat shrink boot from INFINITG today. Designed for high-frequency applications up to 18 GHz, this flexible RF interconnect features superior shielding effectiveness over 95dB, ensuring minimal signal loss. Its durable stainless-steel connectors and PTFE dielectric deliver excellent performance in laboratory, antenna, and automated testing environments. With a compact 1-foot length and right angle SMA connector, this cable simplifies connections in restricted spaces, making it ideal for professional RF systems and long cable runs.
Buy INFINITG LCCA30046-FT1 now and experience unmatched reliability and performance with its excellent shielding and versatile design for demanding RF applications.
Frequently Asked Questions
Where can I buy L-COM LCCA30046FT1?
You can click on the BUY or RFQ button to purchase LCCA30046FT1 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30046FT1?
You can download the LCCA30046FT1 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30046FT1?
L-COM
