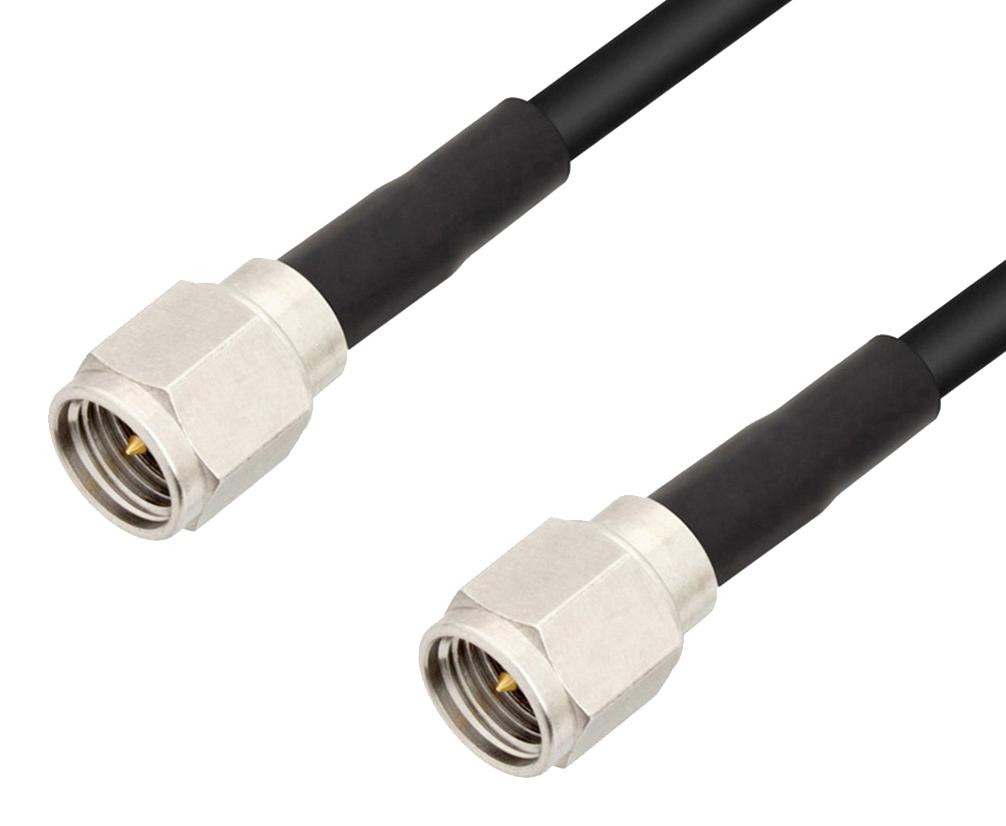

L-COM LCCA30151FT1 SMA Cable Assembly
L-com's LCCA30151-FT1 is a 1-foot low loss SMA male to SMA male cable assembly utilizing LMR-100 coax with Times Microwave components and PVC jacket. Operating up to 5.8 GHz, it features multiple shielding layers exceeding 90 dB shielding effectiveness and a flexible design for applications requiring bendability. Ideal for radio, Wi-Fi, cellular, and antenna systems, this assembly offers low insertion loss, excellent shielding, and reliable performance. Custom configurations and testing services are available for various applications, ensuring adaptable connectivity solutions for demanding environments.
L-COM LCCA30151FT1 SMA Cable Assembly Specifications:
- Frequency Range: DC to 5.8 GHz
- Insertion Loss: 0.32 dB at 0.25 GHz, 0.44 dB at 5.8 GHz
- Impedance: 50 Ohms
- Velocity of Propagation: 66%
- Shielding Effectiveness: > 90 dB
- Group Delay: 1.54 ns/ft
- Capacitance: 30.8 pF/ft
- Inductance: 0.077 uH/ft
- DC Resistance Inner Conductor: 81 Ohms/1000ft
- DC Resistance Outer Conductor: 9.5 Ohms/1000ft
- Cable Diameter: 0.312 inches
- Cable Length: 12 inches
- Connector Type: SMA Male to SMA Male
- Jacket Material: PVC, Black
- Jacket Diameter: 0.11 inches
- Minimum Bend Radius: 0.25 inches
- Maximum Repeated Bend Radius: 1 inch
- Temperature Range: -40°C to +85°C
- Body Material: Stainless Steel, Gold Plated Brass
- Environmental Certifications: Compliant with standard specifications
Buy the INFINITG LCCA30151-FT1 – Reliable SMA Cable for Industrial Applications
Order the INFINITG LCCA30151-FT1 SMA cable assembly online today and enjoy fast shipping. This 1-foot flexible cable features low insertion loss, high shielding effectiveness over 90 dB, and operates up to 5.8 GHz. Perfect for radio, Wi-Fi, cellular, and antenna systems, it offers durable construction, reliable connectors, and customizable options. Ensure your communication systems perform optimally with this high-quality RF cable assembly, designed for easy installation and long-term durability—buy online now for convenience and dependable performance.
Buy INFINITG LCCA30151-FT1 now and experience unmatched reliability and high-performance connectivity for demanding industrial environments.
Frequently Asked Questions
Where can I buy L-COM LCCA30151FT1?
You can click on the BUY or RFQ button to purchase LCCA30151FT1 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30151FT1?
You can download the LCCA30151FT1 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30151FT1?
L-COM
