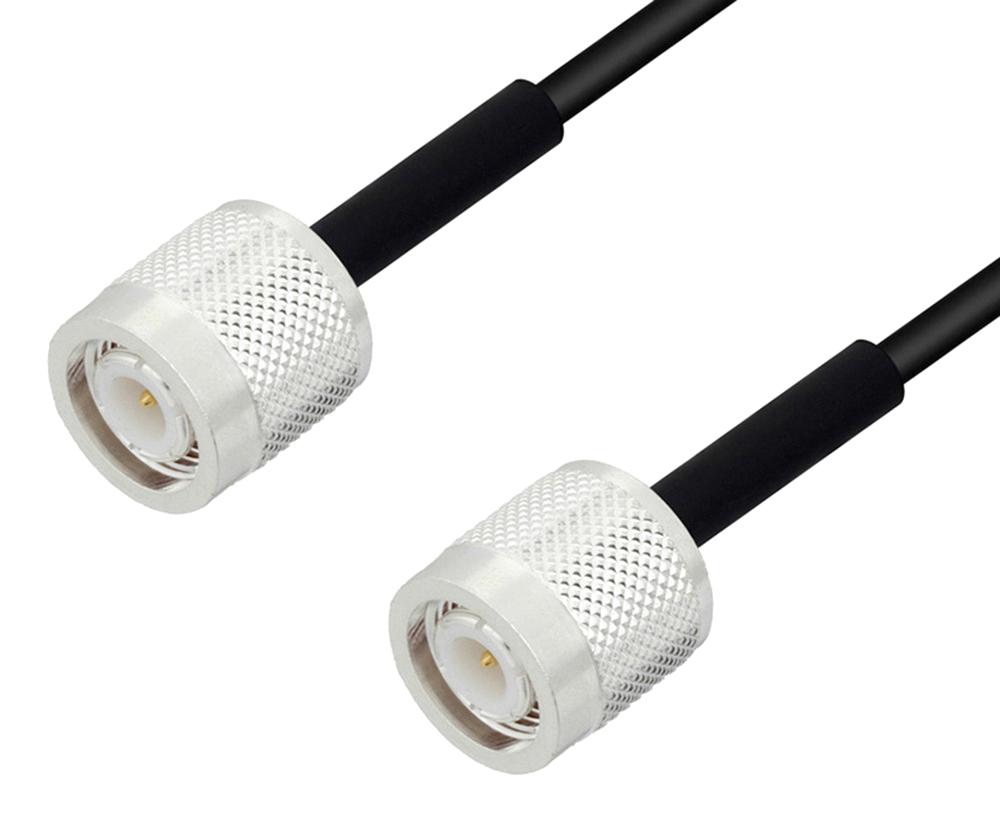

L-COM LCCA30152FT2 TNC cable assembly
L-com’s low loss TNC male to TNC male cable assembly utilizes LMR-100 coax with a PVC jacket, measuring 2 feet. Designed for high-frequency applications up to 5.8 GHz, it features a flexible PE dielectric with low insertion loss and excellent shielding over 90 dB. This assembly is ideal for cellular, Wi-Fi, land mobile radio, and antenna installations. Its durable construction includes a solid copper-clad steel inner conductor, gold-plated beryllium copper contacts, and two layers of shielding—aluminum tape and tinned copper braid—making it suitable for demanding communication systems and laboratory use.
L-COM LCCA30152FT2 TNC cable assembly Specifications:
- Frequency Range: DC to 5.8 GHz
- Impedance: 50 Ohms
- Cable Type: LMR-100A-PVC
- Length: 2 ft
- Diameter: 0.6 in [15.24 mm]
- Weight: 0.198 lbs [89.81 g]
- Inner Conductor: Solid Copper Clad Steel, Gold-plated
- Dielectric: PE
- Shielding: Aluminum Tape and Tinned Copper Braid
- Max Voltage: 2000 Vrms
- Bend Radius: 1 in [25.4 mm]
- Connector: TNC Male to TNC Male
- Operating Temperature: -40°C to +85°C
- Insertion Loss: 0.43 dB at 0.25 GHz, 0.68 dB at 5.8 GHz
- Shielding Effectiveness: > 90 dB
- Group Delay: 1.54 ns/ft
- Capacitance: 30.8 pF/ft
- Conductance: 81 Ohms/1000 ft
- Environmental: RoHS compliant, Field replaceable connectors
Buy the Cor GLOBAL CONNECTIVITY SOLUTIONS LCCA30152FT2 – Reliable RF Cable for Industrial Applications
Purchase the Cor GLOBAL CONNECTIVITY SOLUTIONS LCCA30152FT2 TNC male to TNC male cable assembly online today. Featuring 2 feet of high-quality LMR-100 coax and Times Microwave components, this RF cable offers excellent shielding, low insertion loss, and high frequency performance up to 5.8 GHz. It’s perfect for cellular, Wi-Fi, land mobile radio, and antenna installations, providing durable construction with tinned copper braid shielding and gold-plated contacts. Fast shipping and reliable quality make it the ideal choice for demanding applications.
Order your Cor GLOBAL CONNECTIVITY SOLUTIONS LCCA30152FT2 series RF cable today and ensure your communication systems perform with unmatched reliability and low loss performance.
Frequently Asked Questions
Where can I buy L-COM LCCA30152FT2?
You can click on the BUY or RFQ button to purchase LCCA30152FT2 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30152FT2?
You can download the LCCA30152FT2 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30152FT2?
L-COM
