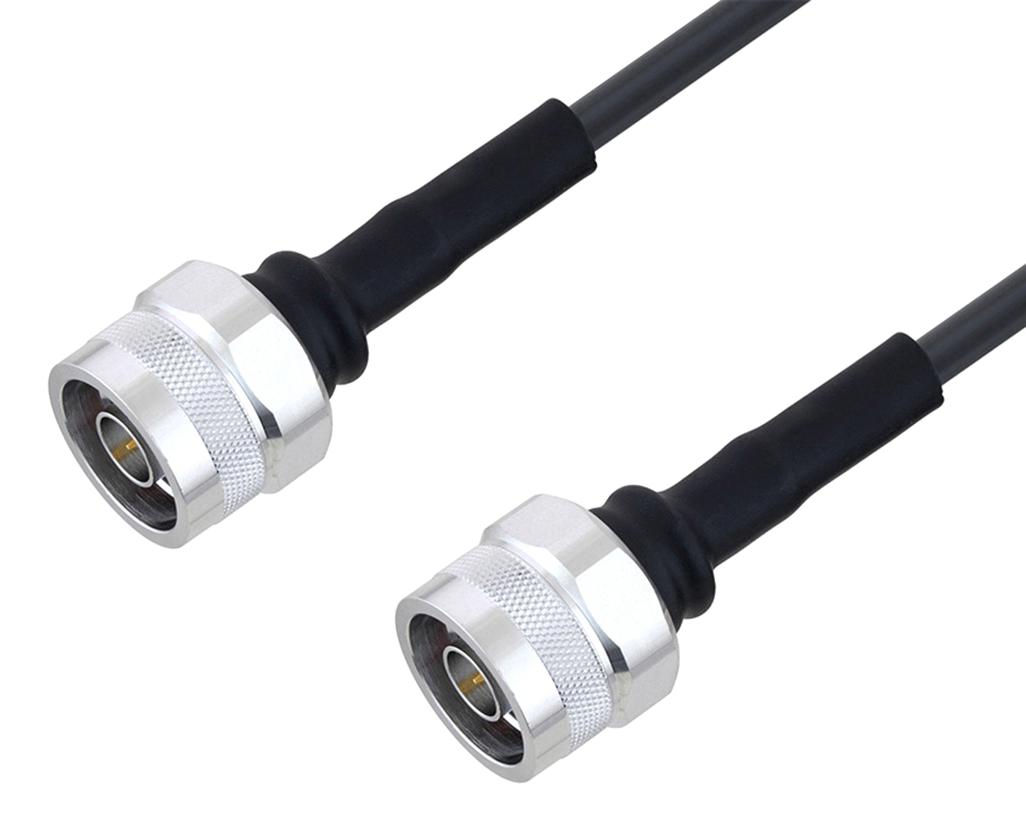

L-COM LCCA30153FT10 RF Cable Assembly
L-com’s LCCA30153-FT10 is a low loss N male to N male cable assembly using LMR-195 coax, 10 FT with Times Microwave components. It features a PE jacket, operates up to 5.8 GHz, and offers shielding effectiveness over 90 dB with low insertion loss. Suitable for land mobile radios, cellular, Wi-Fi, and antenna installations, its flexible design ensures durability and ease of use. The assembly includes Teflon dielectric, solid copper inner conductor, and brass connectors with gold plating, providing excellent electrical performance and environmental resilience.
L-COM LCCA30153FT10 RF Cable Assembly Specifications:
- Frequency Range: 0.25 to 5.8 GHz
- Impedance: 50 Ohms
- Cable Type: LMR-195
- Conductor: Solid Copper, Gold Plated
- Dielectric: PE (F)
- Shielding: Tinned Copper Braid over Aluminum Tape
- Shield Effectiveness: >90 dB
- Velocity of Propagation: 80%
- Insertion Loss: 0.77 dB at 0.25 GHz, 3.19 dB at 5.8 GHz
- DC Resistance: Inner Conductor 7.6 Ω/1000 ft, Outer Conductor 4.9 Ω/1000 ft
- Jacket Material: PE, Black
- Jacket Diameter: 0.195 in (4.95 mm)
- Min Bend Radius: 0.5 in (12.7 mm)
- Connectors: N Male, Brass with Gold Plating
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -70°C to +85°C
- Weight: 0.196 lbs (88.9 g) for 10 ft length
Buy the Cor N–Male to N–Male Cable – Reliable RF Connections for Industrial Applications
Order the Cor N–Male to N–Male Cable Assembly using LMR-195 coax now for superior low loss performance up to 5.8 GHz. This 10 ft flexible RF cable features shielding greater than 90 dB, durable brass connectors with gold plating, and a PE jacket designed for harsh environments. Ideal for antenna setups, cellular, Wi-Fi, and land mobile radios, this assembly ensures reliable, high-quality signal transmission. Same-day shipping, custom options, and expert support available—purchase online now to enhance your communication system with proven reliability.
Get Cor N–Male to N–Male Cable today—built for precision and long-lasting durability in demanding communication environments.
Frequently Asked Questions
Where can I buy L-COM LCCA30153FT10?
You can click on the BUY or RFQ button to purchase LCCA30153FT10 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30153FT10?
You can download the LCCA30153FT10 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30153FT10?
L-COM
