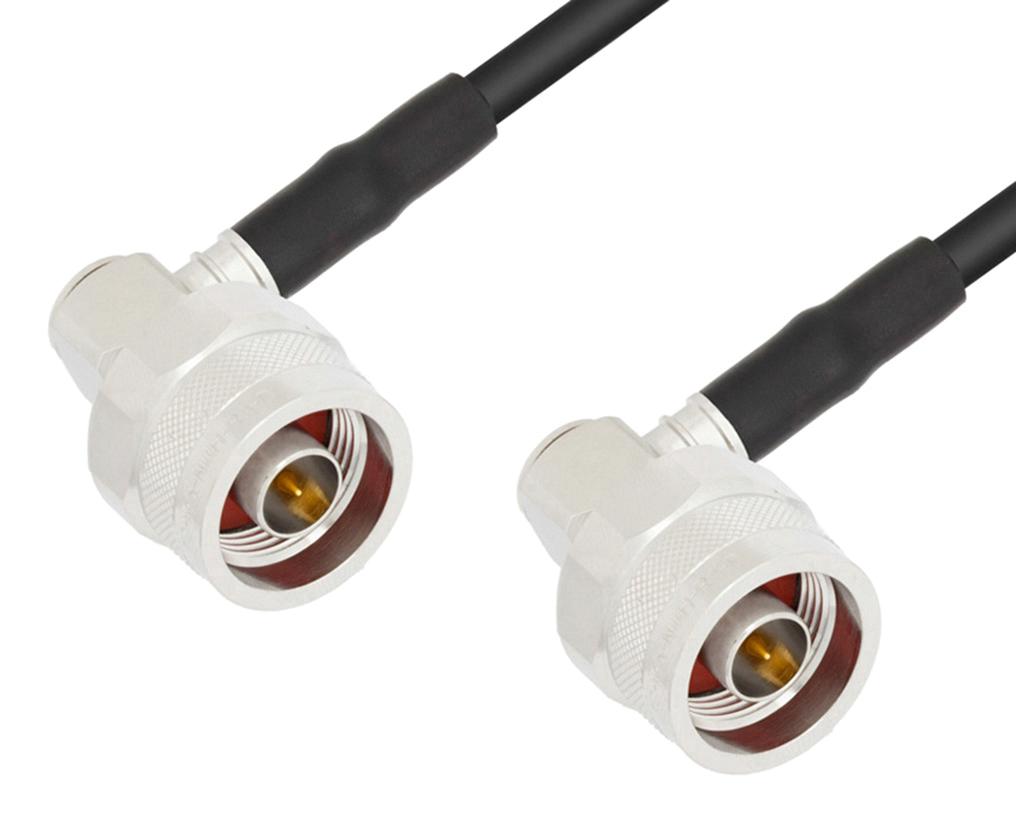

L-COM LCCA30155FT15 RF Cable Assembly
L-com’s LCCA30155-FT1.5 is a flexible, low-loss N male right angle to N male right angle cable assembly utilizing LMR-195 coax, 1.5 FT long. Designed for high-frequency applications up to 5.8 GHz, it offers excellent shielding with over 90 dB and minimal insertion loss. The assembly features dual shielding with aluminum tape and tinned copper braid, with a PE dielectric for optimal performance. Ideal for land mobile radios, cellular, Wi-Fi, antenna installations, and laboratory use, it ensures reliable, low-loss connections in tight spaces with its right-angle interface.
L-COM LCCA30155FT15 RF Cable Assembly Specifications:
- Frequency Range: 0.58 GHz
- VSWR: 1.4
- Velocity of Propagation: 80%
- RF Shielding: > 90 dB
- Group Delay: 1.27 ns/ft
- Capacitance: 25.4 pF/ft
- Inductance: 0.064 uH/ft
- DC Resistance Inner Conductor: 7.6 Ohms/1000ft
- DC Resistance Outer Conductor: 4.9 Ohms/1000ft
- Jacket Spark: 3,000 Vrms
- Cable Type: LMR-195
- Impedance: 50 Ohms
- Inner Conductor: Solid Copper
- Dielectric: PE (F)
- Shield Layers: Two (Aluminum Tape & Tinned Copper Braid)
- Length: 18 inches
- Diameter: 0.8 inches
- Weight: 0.209 lbs
- Connectors: N Male Right Angle
- Frequency Performance: Insertion Loss at 0.25 GHz: 0.48 dB
- Operational Temperature: -40°C to +85°C
- Storage Temperature: -70°C to +85°C
- Mating Cycles: 500
- Connector Material & Plating: Brass, Gold
- Body Material: Brass, Tri-Metal
- Bend Radius: 2 inches
- Tensile Strength: 15 lbs/in
Buy the Buy Infinite Electronics Low Loss N Male Right Angle Cable Part Number LCCA30155-FT1.5 Online
Purchase the Infinite Electronics RF cable assembly now for reliable, low-loss performance in your communication systems. This high-quality N male right angle to N male right angle connector is designed for frequencies up to 5.8 GHz, making it ideal for cellular, Wi-Fi, antenna installations, and laboratory applications. With a 1.5 FT length, durable construction, and shielding effectiveness over 90 dB, it provides robust, interference-free signals. Enjoy same-day shipping and seamless online order processing for all your RF connectivity needs.
Order your Infinite Electronics Low Loss N Male Right Angle to N Male Right Angle Cable Assembly featuring LMR-195 coax today and ensure dependable, high-quality connections for your RF communication projects.
