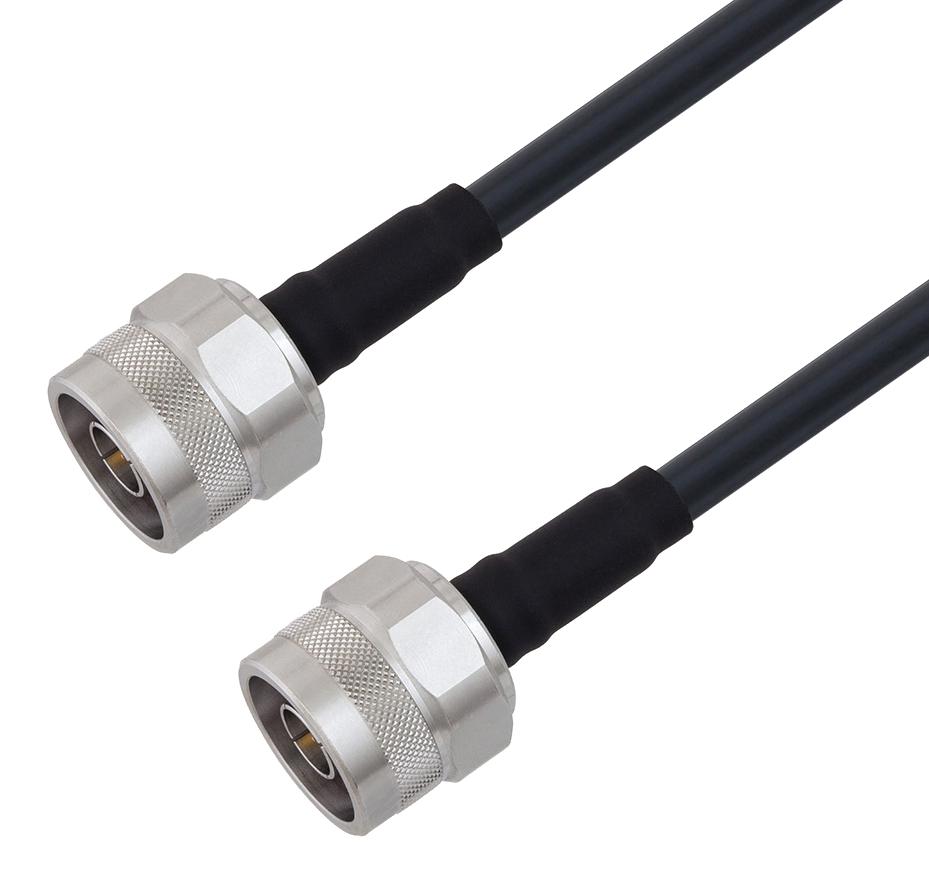

L-COM LCCA30173FT15 Low Loss N Male to N Male Cable
L-com’s LCCA30173-FT1.5 is a high-performance, low loss N male to N male cable assembly with 1.5 feet length, using LMR-240 coax and Times Microwave components. Featuring a PE jacket and double shielding—aluminum tape with a tinned copper braid—it provides shielding effectiveness over 90 dB. Operating up to 5.8 GHz, it ensures minimal insertion loss (typical 0.26 dB) and excellent flexibility with bend radius of 2.5 inches. Ideal for land mobile radio, cellular, Wi-Fi, and antenna applications, this rugged cable assembly supports demanding communication environments.
L-COM LCCA30173FT15 Low Loss N Male to N Male Cable Specifications:
- Length: 1.5 feet
- Diameter: 0.89 inches
- Impedance: 50 Ohms
- Connector Type: N Male to N Male
- Connector Material: Brass, Gold Plated
- Body Material: Brass, Tri-Metal Plating
- Dielectric: PTFE
- Shield Layers: Aluminum Tape, Tinned Copper Braid
- Cable Type: LMR-240
- Operating Frequency: DC to 5.8 GHz
- Maximum Frequency: 5.8 GHz
- Insertion Loss: 0.26 dB (typical at 0.25 GHz)
- Velocity of Propagation: 84%
- Group Delay: 1.41 ns/ft
- Capacitance: 24.2 pF/ft
- DC Resistance Inner Conductor: 3.2 Ohms/1000ft
- Outer Conductor Resistance: 3.89 Ohms/1000ft
- Temperature Range: -40°C to +85°C
- Minimum Bend Radius: 2.5 inches
- Jacket Material: PE, Black
- Jacket Diameter: 0.24 inches
Buy the Cor Global Connectivity Solutions Series Low Loss N Male to N Male Cable: LCCA30173
Order the Cor Global Connectivity Solutions Low Loss N Male to N Male Cable with 1.5 feet length using high-quality LMR-240 coax. This versatile RF cable assembly features over 90 dB shielding effectiveness, supporting frequencies up to 5.8 GHz for optimal performance in land mobile radio, cellular, Wi-Fi, and antenna systems. Its durable PE jacket ensures excellent protection, while the flexible design with a 2.5-inch bend radius makes installation easy in tight spaces. Perfect for demanding communication environments requiring reliable, low-loss connections.
Buy Cor Global Connectivity Solutions N male to N male cable assembly with LMR-240 coax now and experience unmatched reliability and performance in radio and wireless systems.
Frequently Asked Questions
Where can I buy L-COM LCCA30173FT15?
You can click on the BUY or RFQ button to purchase LCCA30173FT15 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30173FT15?
You can download the LCCA30173FT15 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30173FT15?
L-COM
