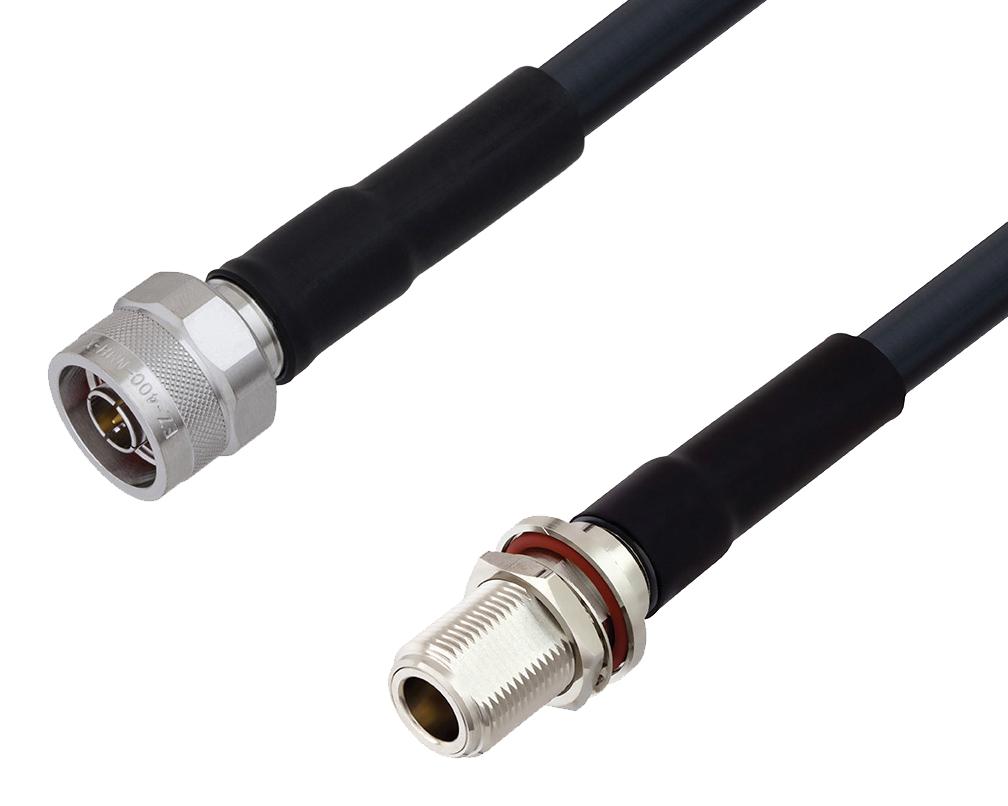

L-COM LCCA30194FT10 RF Cable Assembly
The LCCA30194-FT10 is a high-quality, low-loss N male to N female bulkhead cable assembly designed for reliable RF signal transmission. Using LMR-400 coax cable with PE jacket and Times Microwave components, it operates up to 5.8 GHz, providing excellent shielding over 90 dB and low insertion loss. Its flexible and durable design suits antenna installations, land mobile radio, Wi-Fi, and lab applications. The assembly features a robust construction for general-purpose use, with impedance of 50 Ohms, and ensures minimal signal loss and high environmental resilience, making it ideal for professional communication and testing systems.
L-COM LCCA30194FT10 RF Cable Assembly Specifications:
- Frequency Range: 5.8 GHz
- Impedance: 50 Ohms
- Connector 1: N Male
- Connector 2: N Female Bulkhead
- Cable Type: LMR-400
- Length: 10 FT
- Outer Diameter: 0.875 in [22.23 mm]
- Velocity of Propagation: 85%
- Insertion Loss (Typ.): 0.48 - 1.27 dB
- Shielding Effectivity: > 90 dB
- Dielectric Material: PE (F)
- Inner Conductor Material: Copper Clad Aluminum
- Outer Shield: Tinned Copper Braid over Aluminum Tape
- Jacket Material: PE, Black
- Maximum Bend Radius: 4 in [101.6 mm]
- Temperature Range: -40 to +85°C
- Connector Material: Brass, Gold Plated
- Mechanical Resistance: 8,000 Vrms Jacket Spark
- Weight: 0.2 lbs [90.72 g]
- Group Delay: 1.2 ns/ft
- Capacitance: 23.9 pF/ft
- Inductance: 0.06 uH/ft
Buy the Cor GLOBAL CONNECTIVITY SOLUTIONS LCCA30194-FT10 – Reliable RF Cable for Industrial Applications
Order the Cor GLOBAL CONNECTIVITY SOLUTIONS LCCA30194-FT10 RF cable assembly online today and ensure your communication systems are equipped with high-quality, low-loss cables. Designed with durable materials, flexible construction, and superior shielding, this 10 FT LMR-400 coaxial cable assembly is perfect for antennas, radio, Wi-Fi, and laboratory use. Its excellent impedance match and low insertion loss support optimal signal integrity across applications up to 5.8 GHz. Quick shipping and reliable performance make it an essential component for professional RF and connectivity deployments.
Buy Cor GLOBAL CONNECTIVITY SOLUTIONS LCCA30194-FT10 now and experience unmatched reliability and performance for your RF and communication needs.
Frequently Asked Questions
Where can I buy L-COM LCCA30194FT10?
You can click on the BUY or RFQ button to purchase LCCA30194FT10 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30194FT10?
You can download the LCCA30194FT10 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30194FT10?
L-COM
