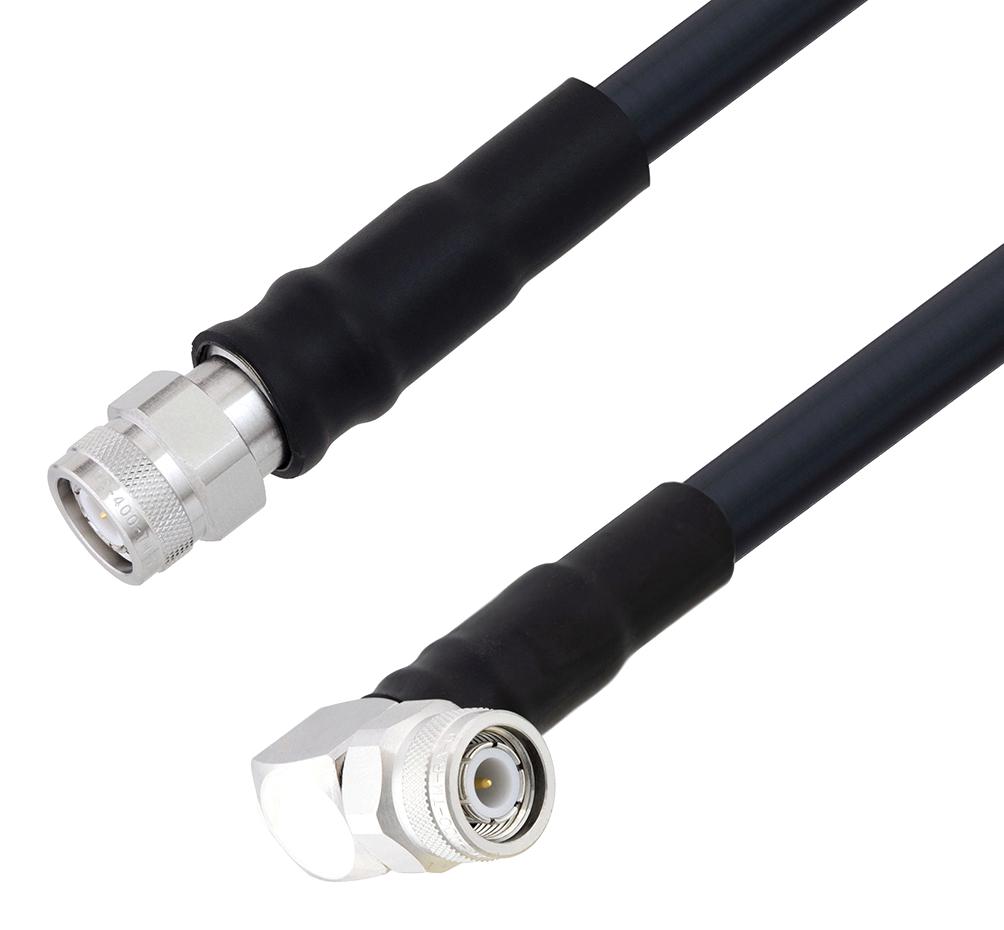

L-COM LCCA30197FT4 RF Coaxial Cable Assembly
L-com’s LCCA30197-FT4 is a low loss TNC male to TNC male right angle cable assembly utilizing LMR-400 coaxial cable, 4 feet long, with Times Microwave components. Designed for frequencies up to 6 GHz, it features low insertion loss, shielding effectiveness over 90 dB, and flexible construction with a PE jacket. Its compact right-angle connectors facilitate tight space installations, suitable for applications such as land mobile radio, cellular, Wi-Fi systems, antenna setups, and laboratory use. Constructed with high-quality materials for durability and reliable performance in communication systems.
L-COM LCCA30197FT4 RF Coaxial Cable Assembly Specifications:
- Frequency Range: DC to 6 GHz
- Impedance: 50 Ohms
- Cable Type: LMR-400
- Length: 4 feet
- Diameter: 0.622 inches
- Weight: 0.08 pounds
- Connector Type: TNC Male to TNC Male Right Angle
- Shielding Effectiveness: > 90 dB
- Velocity of Propagation: 85%
- Insertion Loss: 0.38 dB at 0.25 GHz, 0.73 dB at 5.8 GHz
- Capacitance: 23.9 pF/ft
- Inductance: 0.06 uH/ft
- DC Resistance Inner Conductor: 1.39 Ohms/1000 ft
- Outer Conductor Resistance: 1.65 Ohms/1000 ft
- Jacket Material: PE, Black
- Jacket Diameter: 0.405 inches
- Bend Radius: Minimum 1 inch
- Temperature Range: -40°C to +85°C
- Connector durability: 500 mating cycles
- Material: Brass, Gold Plated, PTFE dielectric
Buy the Buy Infinite Electronics Low Loss TNC Cable Part Number LCCA30197FT4 Online
Order the high-quality Infinite Electronics TNC male to TNC male right angle cable assembly using LMR-400 coax, 4 feet long. Built for frequencies up to 6 GHz, it features excellent shielding over 90 dB, low insertion loss, and flexible construction ideal for tight installations in cellular, Wi-Fi, and radio systems. This durable assembly ensures reliable signal transmission, easy connections, and superior performance in demanding communication environments. Perfect for professional and laboratory applications, order now for fast same-day shipping.
Get Infinite Electronics LCCA30197FT4 today—designed for high-frequency communication and long-lasting durability.
Frequently Asked Questions
Where can I buy L-COM LCCA30197FT4?
You can click on the BUY or RFQ button to purchase LCCA30197FT4 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30197FT4?
You can download the LCCA30197FT4 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30197FT4?
L-COM
