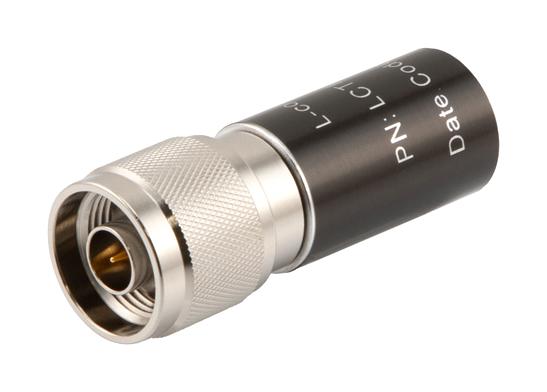

L-COM LCTR1010 RF Load
L-com’s LCTR1010 is an RF termination supporting frequencies up to 18 GHz and handling 2 Watts (CW). Featuring an N-type male connector, it offers a max VSWR of 1.30:1 and is constructed with brass, nickel, and aluminum for durability. This dummy load is essential in RF and microwave systems to absorb incident signals from unused ports, preventing damage and ensuring signal integrity. Ideal for signal splitters, coaxial terminations, and testing setups, it operates reliably from -55°C to +85°C, making it suitable for various industrial RF applications.
L-COM LCTR1010 RF Load Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- VSWR: 1.3:1
- Input Power (CW): 2 Watts (derated to 0.5W @ +125°C)
- Input Power (Peak): 500 Watts
- Connector: N Male
- Size: Length 2.08 in [52.83 mm], Width 0.787 in [19.99 mm]
- Weight: 0.011 lbs [4.99 g]
- Materials: Contact Brass Gold, Body Brass Nickel, Housing Aluminum
- Operating Temperature: -55°C to +85°C
Buy the L-com LCTR1010 – Reliable RF Load for Industrial Applications
Purchase the L-com RF Load up to 18 GHz with N Male connector today online to ensure your RF and microwave systems operate seamlessly. This robust dummy load handles up to 2 Watts (CW), features high-quality brass and aluminum components, and is designed for precision in RF testing, calibration, and measurement applications. Easy to incorporate into signal splitters, switches, and couplers, it guarantees minimal reflection with a VSWR of 1.30:1. Rely on this durable, temperature-rated device for demanding industrial RF environments and measurements.
Buy L-com LCTR1010 now and experience unmatched reliability and performance in RF testing and microwave systems, with high power handling and durable construction.
Frequently Asked Questions
Where can I buy L-COM LCTR1010?
You can click on the BUY or RFQ button to purchase LCTR1010 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCTR1010?
You can download the LCTR1010 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCTR1010?
L-COM
