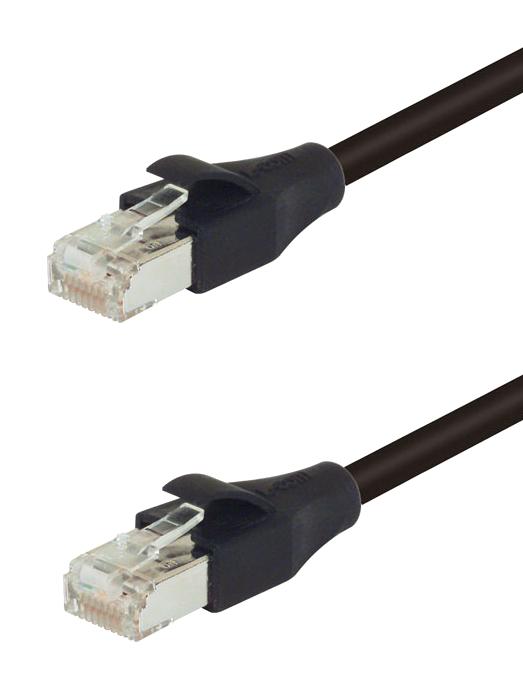

L-COM TRD695AZHFBLK5 RJ45 Ethernet Connector
This shielded Cat 6A RJ45 connector features a polycarbonate housing, phosphor bronze contacts, and nickel-plated shielding. Designed for efficient data transmission over Ethernet networks, it supports PoE up to 64 meters with a voltage rating of 300V. The connector is tested for durability with up to 1 million flex cycles and conforms to TIA-1096 standards. Suitable for high-speed LAN installations, it provides reliable connections, excellent shielding, and is compatible with Category 6A cables for professional networking applications.
L-COM TRD695AZHFBLK5 RJ45 Ethernet Connector Specifications:
- Housing Material: Polycarbonate, UL94V-O
- Contacts: Phosphor bronze, gold-plated in contact area
- Shielding: Nickel-plated brass
- Voltage Rating: 300V
- Resistance: Oil, water, salt water resistant
- Temperature Range: -40°C to +75°C
- Flex Life: 1 million cycles (10x cable diameter), 10 million cycles (20x cable diameter)
- Meets TIA-1096 standards
- Maximum PoE Length: 64 meters (210 feet)
- Overall Cable Length Tolerance: ±0.5 inches
- Cable Type: 26 AWG stranded tinned copper conductors with spline, foil tape, drain wire
- Approval: UL Listed, conforming to safety standards
Buy the Leone Series RJ45 Cat 6A Shielded: TRD695AZHF-BLK-5
Purchase the Leone Series RJ45 Ethernet Connector online today and ensure your network installations are reliable, shielded, and conform to industry standards. This high-quality connector offers superior durability, excellent shielding, and gold-plated contacts for optimal data transmission and PoE support over long distances up to 64 meters. Suitable for professional networking environments, its robust design withstands thousands of flex cycles and offers long-term performance. Get yours now and experience professional-grade connectivity for your high-speed LAN requirements.
Order your Leone SeriesRJ45 Cat 6A Shielded connector today and enhance your Ethernet network with reliable, high-speed, shielded connections.
Frequently Asked Questions
Where can I buy L-COM TRD695AZHFBLK5?
You can click on the BUY or RFQ button to purchase TRD695AZHFBLK5 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TRD695AZHFBLK5?
You can download the TRD695AZHFBLK5 datasheet or visit the L-COM website for support.
Who is the manufacturer of TRD695AZHFBLK5?
L-COM
