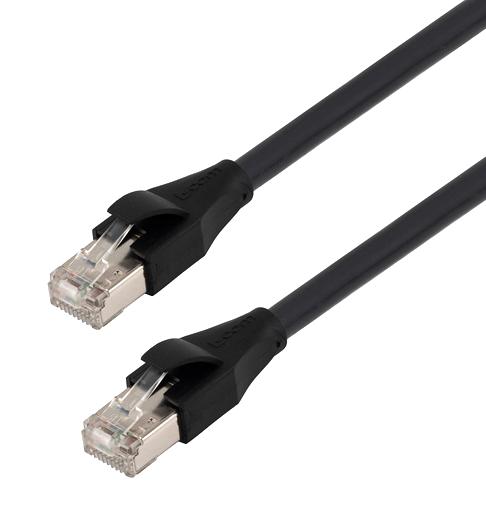

L-COM TRD695SFBLK25F Shielded Ethernet Cable
The L-com double shielded Category 6 Ethernet cable assembly features an overall braid shield around individually foil-shielded pairs and uses a PVC jacket in black. Constructed with 26 AWG stranded conductors, it supports high-speed data transmission up to 1 gigabit Ethernet and is compatible with Cat 5e applications. The cable includes RJ45 connectors wired according to TIA standards, rated for 30V, with an operating temperature range of -10°C to +75°C. Designed for noisy environments like data centers, it offers an economical solution for reliable networking.
L-COM TRD695SFBLK25F Shielded Ethernet Cable Specifications:
- Conductor Material: 26 AWG stranded copper
- Shielding: Overall aluminum/polyester foil shield with tin-plated copper braid
- Jacket Material: PVC, black color
- Operating Temperature: -10°C to +75°C
- Voltage Rating: 30V
- Connector Type: RJ45 shielded modular plug (8P8C)
- Compliance: TIA/EIA-568-B.2-1 Category 6 standards
- Cable Diameter: Approximately 6.0 mm
- Cable Lengths Available: From 1.0 to 100 feet/meters
- Cable Construction: Four twisted pairs with individual foil shielding and overall braid shield
Buy the L-com TRD695SFBLK25F – Reliable Shielded Ethernet Cable for Industrial Applications
Order the L-com shielded Ethernet cable assembly today for dependable high-speed networking in industrial, data center, or noisy environments. Made with durable PVC jacket and dual shielding, it ensures minimal interference and reliable data transfer. The cable supports gigabit Ethernet speeds, features quality RJ45 connectors wired per TIA standards, and is rated for 30V with a temperature range from -10°C to +75°C. Its flexible length options make installation straightforward, offering an economical and robust networking solution for professional environments.
Get L-com TRD695SFBLK25F today—built for high-speed data transmission and durable networking in demanding environments.
Frequently Asked Questions
Where can I buy L-COM TRD695SFBLK25F?
You can click on the BUY or RFQ button to purchase TRD695SFBLK25F from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TRD695SFBLK25F?
You can download the TRD695SFBLK25F datasheet or visit the L-COM website for support.
Who is the manufacturer of TRD695SFBLK25F?
L-COM
