L-COM TRD795ZBLK3M Ethernet Cable

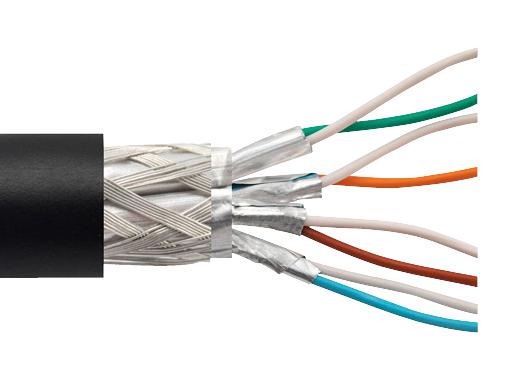

L-com's double-shielded Category 7 Ethernet cable features an overall braid shield around individually shielded twisted pairs, complying with TIA standards. The black cable jacket is made from LSZH (low smoke zero halogen) material, verified by IEC standards. It utilizes 26 AWG stranded conductors for flexibility and durability, supporting high-speed networks up to 10 Gbps, including Category 7 and Category 6a applications. The cable assembly, equipped with RJ45 male plugs on each end, is rated for 30V and operates within a temperature range of -10°C to +80°C. Ideal for Ethernet and networking environments, it ensures high performance in electrically noisy or high-speed data settings.
L-COM TRD795ZBLK3M Ethernet Cable Specifications:
- Shielding: Overall braid shield around individually shielded twisted pairs
- Jacket Material: LSZH (Low Smoke Zero Halogen)
- Color: Black
- Conductors: 26 AWG stranded copper
- Operating Voltage: 30V
- Temperature Range: -10°C to +80°C
- Compliance: TIA standards, IEC flame rating IEC 60332-1
- Cable Lengths: From 0.5 meters to 15 meters (custom lengths available)
- Connectors: RJ45 male plugs on each end, gold-plated contacts
- Shielding Effectiveness: Enhanced EMI resistance
- Application: Ethernet network installation, industrial data transfer, high-speed communication
Buy the L-com TRD795ZBLK3M – Reliable Ethernet Cable for Industrial Applications
Purchase the L-com Ethernet Cable online today to ensure high-speed network connectivity with superior shielding and durability. With double shielding and LSZH jacket, it provides excellent EMI resistance and safety compliance. Ideal for industrial and commercial networking environments, the cable supports speeds up to 10 Gbps and is rated for voltages up to 30V. Easy to install with reliable RJ45 connectors, it guarantees excellent performance across a temperature range of -10°C to +80°C. Order now for fast delivery and professional-grade networking solutions.
Buy L-com TRD795ZBLK3M now and experience unmatched reliability and performance in high-speed Ethernet networking.
Frequently Asked Questions
Where can I buy L-COM TRD795ZBLK3M?
You can click on the BUY or RFQ button to purchase TRD795ZBLK3M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TRD795ZBLK3M?
You can download the TRD795ZBLK3M datasheet or visit the L-COM website for support.
Who is the manufacturer of TRD795ZBLK3M?
L-COM
