L-COM TRD795ZBLK75M Category 7 Ethernet cable

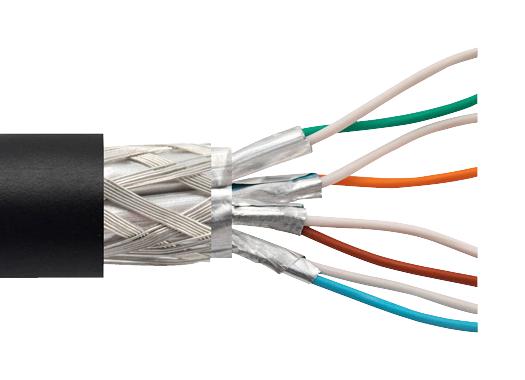

The L-com double-shielded Category 7 Ethernet cable features an overall braid shield around individually shielded twisted pairs, constructed with a durable PVC jacket in black. It is designed for high-speed data transmission and is suitable for 10 Gigabit applications, compatible with Category 6a and above. The cable is 7.5 meters (approximately 25 feet) long, with RJ45 male connectors on each end wired according to TIA standards. Made with 26 AWG stranded conductors, it offers flexibility and easy installation. The cable is verified to meet IEC 60332-1, 60754, and 61034 standards for low smoke zero halogen (LSZH) jackets, ensuring safety in fire scenarios. Rated for 30V and operating temperatures from -10°C to +80°C, it is ideal for high-speed networking and data center environments. The product complies with Category 7 standards and is suitable for applications requiring high data rates, such as communications and networking.
L-COM TRD795ZBLK75M Category 7 Ethernet cable Specifications:
- Cable Type: Category 7 shielded Ethernet cable
- Shielding: Overall braid shield with individually shielded twisted pairs
- Conductors: 26 AWG stranded copper
- Jacket Material: LSZH (Low Smoke Zero Halogen), black PVC
- Length: 7.5 meters (approximately 25 feet)
- Connectors: RJ45 male connectors on each end, wired per TIA standards
- Voltage Rating: 30V
- Operating Temperature: -10°C to +80°C
- Compliance: IEC 60332-1, IEC 61034, IEC 60754
- Application: High-speed data transmission, networking, data centers
- Standards: Category 7, compatible with Category 6a and above
- Wire Gauge: 26 AWG
- Shielding: Aluminum/polyester foil shielding of each pair, overall tin-plated copper braid
- Rated for outdoor and indoor use, fire-resistant
- Designed for high-speed communication, supporting 10 Gigabit Ethernet
Buy the L-com TRD795ZBLK75M – Reliable Category 7 Ethernet Cable for Industrial Applications
Purchase the L-com Category 7 Ethernet cable online today and experience reliable high-speed data transmission perfect for data centers, industrial networks, and demanding communications environments. This double-shielded cable features an LSZH jacket for safety, high-quality 26 AWG stranded conductors for flexibility, and wires wired per TIA standards. With a length of 7.5 meters, it is rated for 30V and operates efficiently between -10°C to +80°C, ensuring optimal performance in various settings. Designed for easy installation, it is ideal for applications requiring high data rates and robust connectivity.
Get L-com TRD795ZBLK75M today—built for high-speed networking and durable data transmission in demanding environments.
Frequently Asked Questions
Where can I buy L-COM TRD795ZBLK75M?
You can click on the BUY or RFQ button to purchase TRD795ZBLK75M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TRD795ZBLK75M?
You can download the TRD795ZBLK75M datasheet or visit the L-COM website for support.
Who is the manufacturer of TRD795ZBLK75M?
L-COM
