A Premier B2B Part Search

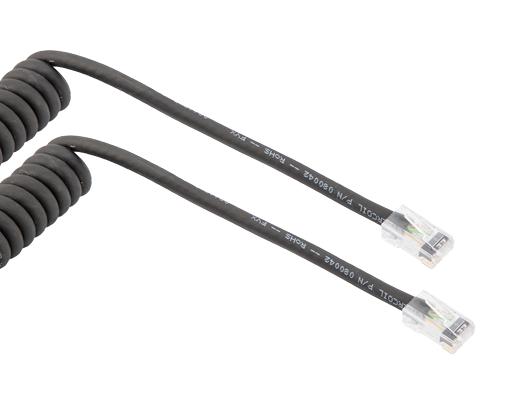

L-COM TRD815CH412F Communications Cable
This product is a high-quality, flexible communication cable designed for reliable data transmission. Constructed with 26AWG stranded tinned copper conductors and high-density polyethylene insulation, it features color-coded twisted pairs for easy identification. The polyurethane jacket provides durability with a nominal wall thickness of .040 inches, suitable for various industrial applications. Available in different coil lengths up to 18 feet, it is rated for a maximum temperature of 60°C and a minimum of -20°C, with a maximum voltage of 300V and DC resistance of 42.6 ohms per 1000 feet, ensuring efficient electrical performance.
L-COM TRD815CH412F Communications Cable Specifications:
- Conductor: 26AWG stranded tinned copper
- Insulation: High-density polyethylene, .008 inch wall
- Jacket: Polyurethane, black, .040 inch wall
- Cable OD: .240 inches
- Color coding: White/Blue, White/Orange, White/Green, White/Brown
- Twisted pairs: Four pairs twisted into cable core
- Temperature rating: Max 60°C, Min -20°C
- Voltage rating: 300V
- DC Resistance: Max 42.6 ohm per 1000 feet
- Cable lengths: Ranges from 0.5 feet to 18 feet, with tolerance
- Dielectric withstand voltage: Min 1500V RMS
- Print: White ink with product details
- Separation tape: Tissue tape over cable core
- Available in coil lengths: 0.5 ft, 1 ft, 2 ft, 3 ft, 4 ft, 6 ft, 9 ft, 12 ft, 15 ft, 18 ft
Buy the Buy LOM Communication Cable Part Number TRD815CH412F Online
Secure your communication projects by purchasing the LOM TRD815CH412F series flexible data cable online. Designed with high-quality 26AWG tinned copper conductors and polyethylene insulation, this cable offers excellent durability and electrical performance. Its polyurethane jacket provides extra protection suitable for industrial environments. Available in various coil lengths up to 18 feet, it supports a maximum temperature of 60°C and a voltage of 300V. Ideal for reliable data transmission, order now to enhance your infrastructure efficiently and effortlessly.
Order your LOM TRD815CH412F series flexible communication cable today and ensure reliable data transmission for your industrial projects.
Frequently Asked Questions
Where can I buy L-COM TRD815CH412F?
You can click on the BUY or RFQ button to purchase TRD815CH412F from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TRD815CH412F?
You can download the TRD815CH412F datasheet or visit the L-COM website for support.
Who is the manufacturer of TRD815CH412F?
L-COM
