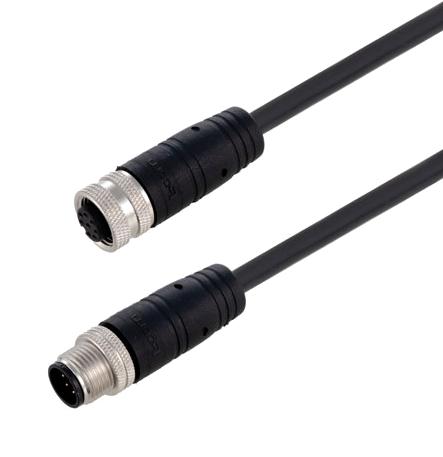

L-COM TRG883P4B05M M12 Cable Assembly
The M12 8P A-CODE male/female unshielded cable assembly features 24 AWG pure PVC jacketed cables in black, rated for 30 V AC/DC and a maximum current of 2A. It is designed with molded thermoplastic polyurethane (TPU) for the hood and insulator, with brass screw nuts and phosphor bronze contacts gold plated for durability. Suitable for industrial and electronic applications, it offers IP67 ingress protection, operates between -25°C to +80°C, and resists oil, sunlight, and chemicals. The assembly includes color-coded wiring and is individually packaged per specifications, ensuring reliable connectivity in demanding environments.
L-COM TRG883P4B05M M12 Cable Assembly Specifications:
- Connector Type: M12 8P A-CODE male/female, unshielded
- Wire Gauge: 24 AWG
- Cable Jacket: Polyurethane, black, resistant to oil, sunlight, and chemicals
- Jacket Flame Rating: VW-1
- Voltage Rating: 30 V AC/DC
- Maximum Current: 2A
- Operating Temperature Range: -25°C to +80°C
- Ingress Protection: IP67 (mated)
- Material: Molded thermoplastic polyurethane (TPU) hood and insulator
- connector Material: Brass, nickel plated
- Contacts: Phosphor bronze, gold plated
- Cable Lengths: 0.5m, 1.0m, 2.0m, 3.0m, 5.0m, 10.0m
- Cable Diameter: approximately 5.20 mm (.205 inches)
- Labeling: Color-coded wiring (white, brown, green, yellow, gray, pink, blue, red)
Buy the Leone TRG883P4B – Reliable Industrial M12 Connector for Automation Applications
Upgrade your industrial connectivity with the Leone M12 cable assembly featuring unshielded design, 24 AWG PVC insulation, and IP67 protection. Easy to install, with color-coded wiring for quick identifying and robust brass and phosphor bronze contacts with gold plating to prevent corrosion. Suitable for automation, machinery, and control systems operating in demanding environments. Available in multiple lengths, all individually packaged according to strict specifications, delivering dependable performance and long-lasting durability for your industrial needs. Buy online now for fast delivery and reliable performance.
Order your Leone Series TRG883P4B cable assembly today and ensure reliable and durable connections for industrial automation projects.
Frequently Asked Questions
Where can I buy L-COM TRG883P4B05M?
You can click on the BUY or RFQ button to purchase TRG883P4B05M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TRG883P4B05M?
You can download the TRG883P4B05M datasheet or visit the L-COM website for support.
Who is the manufacturer of TRG883P4B05M?
L-COM
