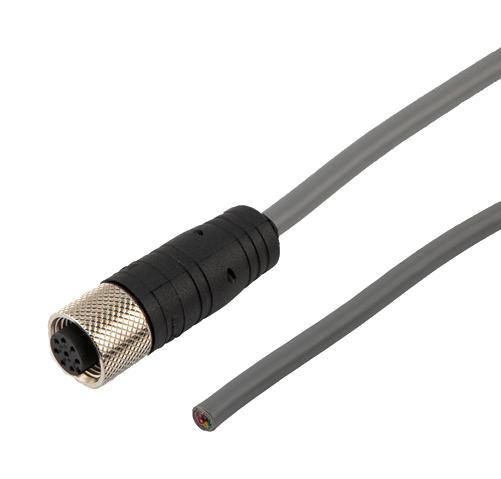

L-COM TRG888C6G2M Shielded M12 Cable
The TRG888-C6G-2M from L-com is a 2-meter M12 cable assembly featuring an 8-pole A-code female connector and a pre-cut pigtail end for direct wiring. The cable is made with 24 AWG stranded conductors, offering flexibility and durability in various applications. It has a grey UL 2517 PVC jacket that is flame-retardant (VW-1), resistant to moisture, sunlight, and suitable for outdoor use. The cable is shielded with foil to protect against EMI and RFI noise. The M12 female connector is threaded and IP67 waterproof when properly mated. It is ideal for sensor, actuator, industrial automation, communication, and networking applications, especially where direct connection to equipment is required.
L-COM TRG888C6G2M Shielded M12 Cable Specifications:
- Cable Length: 2 meters
- Conductor Size: 24 AWG stranded copper
- Number of Conductors: 8
- Jacket Material: PVC, gray, UL94V-0, flame-retardant, UV resistant, moisture resistant
- Jacket Diameter: .205 inches (5.20 mm)
- Connector Type: M12, 8-pole, female, A-code, threaded
- Shielding: Aluminum/polyester foil shield with drain wire
- Operating Temperature: -25°C to +105°C
- Ingress Protection: IP67 when mated
- Voltage Rating: 30 V AC/DC
- Maximum Current: 2A
- Wire Gauge: 24 AWG
- Flame Rating: VW-1
- Insulation Material: PBT+GF
- Shell Material: Nickel-plated brass
- Contacts: Phosphor bronze, gold-plated
- Resistances: Sunlight, moisture resistant
Buy the L-com TRG888-C6G-2M – Reliable Shielded M12 Cable for Industrial Applications
Purchase the L-com TRG888-C6G-2M shielded M12 cable online today to ensure seamless, durable, and reliable connections in your automation, sensor, and communication projects. With its flame-retardant PVC jacket, IP67 waterproof rating, and foil shielding against EMI/RFI, this 2-meter cable is ideal for harsh industrial environments. Its 8-pole female connector provides secure, corrosion-resistant connections, making it perfect for sensor, actuator, and networking applications. Order now to benefit from fast delivery, quality assurance, and top performance in your installations.
Buy L-com TRG888-C6G-2M now and experience unmatched reliability and performance in industrial automation and sensor wiring.
Frequently Asked Questions
Where can I buy L-COM TRG888C6G2M?
You can click on the BUY or RFQ button to purchase TRG888C6G2M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TRG888C6G2M?
You can download the TRG888C6G2M datasheet or visit the L-COM website for support.
Who is the manufacturer of TRG888C6G2M?
L-COM
