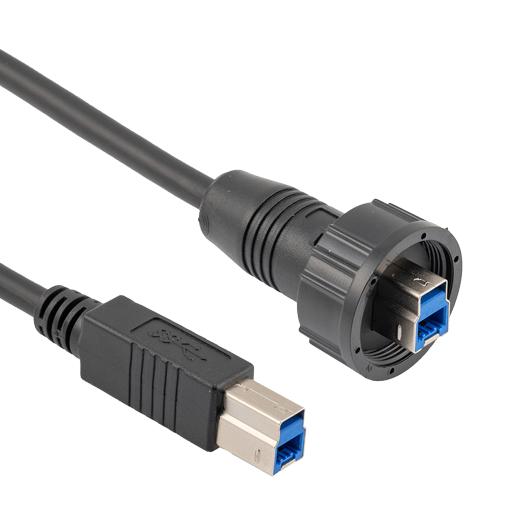

L-COM U3A00017105M Waterproof USB Data Cable
This USB 3.0 waterproof cable assembly features a Type B plug, twisted pair wiring, and UV-resistant PVC jacket. It provides reliable data transfer at -20°C to +80°C operating range with a 360° shield termination, gold-plated contacts, and IP67 ingress protection. The cable includes 2 unshielded twisted pairs, shielded with foil and braid for optimal EMI protection. Designed for industrial and outdoor environments, it ensures durability, flexible installation, and compliance with USB 3.0 standards, making it ideal for rugged applications requiring high-speed data connection and waterproof performance.
L-COM U3A00017105M Waterproof USB Data Cable Specifications:
- Connector: USB 3.0 Type B plug
- Ingress Protection: IP67 (mated)
- Cable: UL Style 20276, 2x twisted pair, 30AWG, foil shield, drain wire, 24AWG overall braid shield
- Jacket: PVC, black, UV resistant, diameter 0.217 inches (5.50 mm)
- Operating Temperature Range: -20°C to +80°C
- Contact Material: Gold-plated (30 micro-inches)
- Shielding: Foil and braid, 65% coverage
- Waterproof: yes
- Shield Termination: 360°
- Compliance: USB 3.0 standards
- Additional: Pins with UL94 V-0 flammability rating, molded hood gasket, UV resistance
- Dimensions: Connector length compatible with rugged environments, jacket diameter approximately 5.50 mm
- Certifications: UL Listed, IP67 rated
- Notes: Individually packaged per specifications, cable tested for continuity
Buy the Lom U3A00017105M – Reliable Waterproof USB 3.0 Data Cable for Industrial Applications
Order the waterproof USB 3.0 data cable assembly from Lom today for reliable high-speed connections in industrial, outdoor, and rugged environments. This durable cable features a Type B connector, UV-resistant PVC jacket, and advanced shielding to prevent EMI, ensuring robust data transmission across challenging conditions. Designed with gold-plated contacts and an IP67 rating, it offers long-lasting performance and easy installation. Perfect for automation, manufacturing, and outdoor communication systems. Purchase online now for fast delivery and essential connectivity.
Get Lom U3A00017105M today—built for high-speed data transfer and outdoor durability in tough environments.
