L-COM WPDB9SKIT Waterproof D-Sub Connector

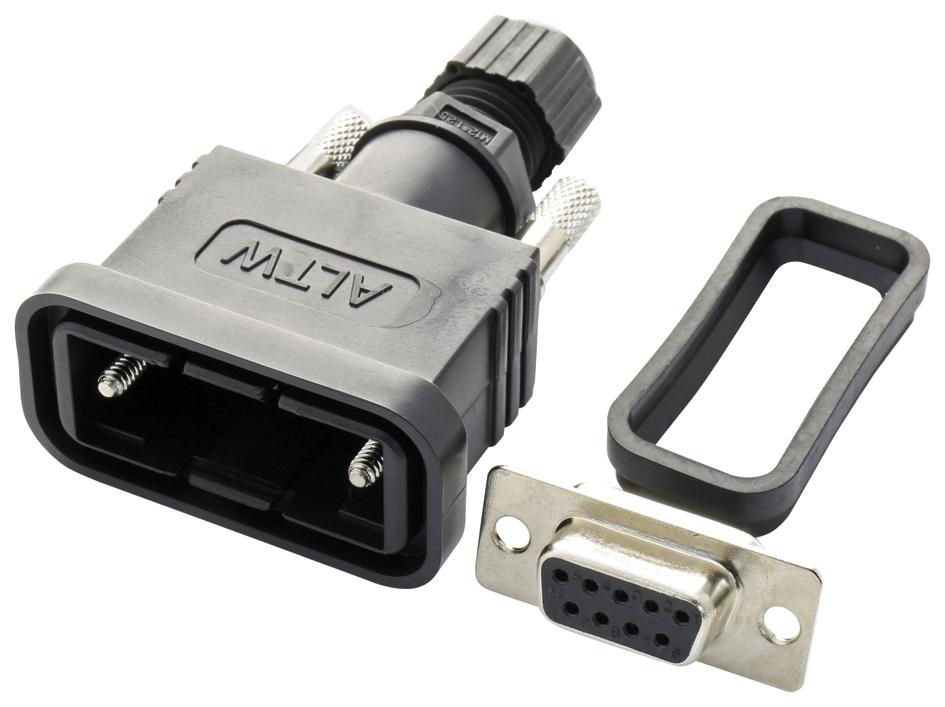

The WPDB9S-KIT is a waterproof D-sub backshell kit designed for secure serial data transmission and device management in harsh environments. It features an IP67 rating, ensuring protection against dust and water. The connector, suitable for wire ranges from 30 to 20 AWG, includes a solder cup female connector with an ABS housing, nylon sealing gaskets, nickel-plated brass thumbscrews, and rubber seals. Ideal for communication, networking, automation, and process control applications, it provides reliable connection integrity through gold-plated contacts and adjustable cable fitting thanks to the sealing nut.
L-COM WPDB9SKIT Waterproof D-Sub Connector Specifications:
- Recommended cable diameter: 0.138 D to 0.276 D inches
- IP (Ingress Protection) rating: 67
- Operating temperature range: -40°C to +105°C
- Material Gaskets: EPDM
- Body: Nylon
- Housing: ABS
- O-Ring: Silicone
- Seal: EPDM
- Sealing nut: Nylon
- Thumbscrew: Brass
- Connector type: DB9 Female solder cup
- Finish: Nickel plated
- Wire Range: 30 to 20 AWG
- Protection: IP67, dust and water resistant
- Application: Data communication, networking, automation, device management
Buy the Industrial Connectivity Waterproof D-Sub – Reliable IP67 Connectors for Industrial Applications
Purchase the WPDB9S-KIT waterproof D-sub backshell kit today online to ensure durable, IP67-rated connectivity for your industrial data transmission needs. This kit includes a solder cup female connector, nylon housing, rubber gaskets, and nickel-plated brass thumbscrews, providing a robust and waterproof connection. Suitable for harsh environments, it guarantees corrosion resistance and reliable performance in automation, communication, and networking systems. Order now for fast delivery and experience seamless, protected connectivity in your critical applications.
Buy WPDB9SKIT waterproof D-sub backshell kit now and ensure secure, reliable connections in demanding environments with IP67 protection and adjustable cable fitting.
