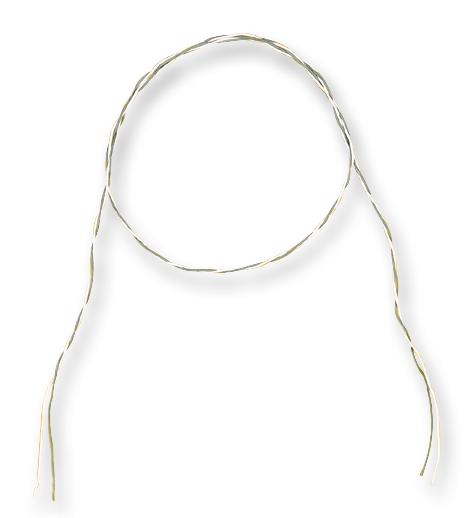

LABFACILITY WK200X100 Thermocouple Cable
This PTFE insulated twin twisted pair thermocouple cable is designed for extending or constructing simple thermocouples for various industrial applications. It consists of a single pair of conductors, each with 0.2mm diameter, twisted together for enhanced flexibility and mechanical strength. Suitable for thermocouple types K, J, and T, it operates reliably in harsh environments. The cable's insulation withstands temperatures from -75°C to 260°C and resists oils, acids, and other fluids, making it ideal for steam, pressure applications, autoclaves, and sterilizers. Available in 25m, 50m, and 100m reel lengths, with precise tolerances for maximum accuracy.
LABFACILITY WK200X100 Thermocouple Cable Specifications:
- Conductor Diameter: 0.2mm
- Number of Cores: Twin (pair)
- Insulation Material: PTFE
- Temperature Range: -75°C to 260°C
- Tolerance Class: 1 (for accuracy)
- Mechanical Strength: Good flexibility and durability
- Resistant to: Oils, acids, adverse fluids
- Reel Lengths Available: 25m, 50m, 100m
- Color Coding: IEC-584-3 (Green/-White, Black/-White, Brown/-White)
- Conductors: Copper alloy
- Application: Thermocouple extension, pressure and steam environments
- Wire Gauge: 0.2mm
- Certification: Suitable for industrial use
Buy the Buy Thermocouple Cable Type K Twin Twisted Pair Part Number WK200X100 Online
Purchase the high-quality thermocouple extension cable designed for industrial thermocouples, offering excellent temperature resistance up to 260°C. This twin twisted pair PTFE insulated cable provides superior mechanical strength, flexibility, and chemical resistance, making it ideal for autoclaves, pressure sensors, and demanding environments. Available in 25, 50, and 100-meter reels, it ensures precise extension with class 1 tolerance for maximum accuracy. Trust this reliable component for your industrial, sterilization, and process control applications, delivering consistent performance under harsh conditions.
Order your Thermocouple Cable Type K Twin Twisted Pair WK200X100 today and ensure reliable measurements in demanding industrial environments.
