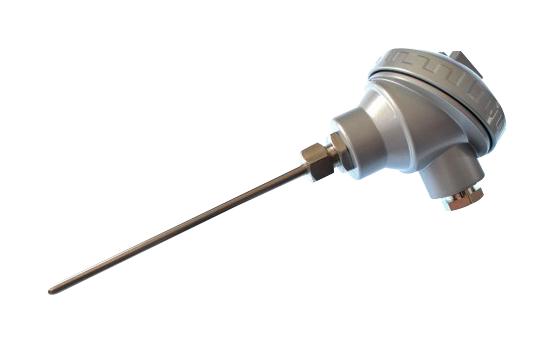

LABFACILITY XF1103FAR Platinum Resistance Probe with Terminal Head
This heavy-duty platinum resistance Pt100 probe features a durable 6.0mm diameter stainless steel stem in a range of lengths from 150mm to 600mm. It is designed with a weatherproof IP67 aluminium alloy terminal head, suitable for demanding industrial environments. The probe conforms to IEC 751 standards, offering a temperature range from -50°C to +450°C. Options include with or without a 1/2" BSP parallel process connection, ensuring versatile installation for process control and temperature measurement applications in various industries.
LABFACILITY XF1103FAR Platinum Resistance Probe with Terminal Head Specifications:
- Sensor type: Pt100 (100 Ohms @ 0°C) to IEC 751, Class B, 4 wire
- Construction: 6.0mm diameter stem in 316 stainless steel
- Termination: IP67 aluminium alloy weatherproof connection head with 4 wire connection block, M20 x 1.5mm cable entry (gland included)
- Process connection: 1/2" BSP parallel (where applicable)
- Probe temperature range: -50°C to +450°C
- Probe length: 150mm, 200mm, 250mm, 500mm, 600mm
- Probe diameter: 6.0mm
- Sensor rated temperature (connection head): -50°C to +450°C
- Connection head: IP67 aluminium alloy weatherproof, with M20 x 1.5mm cable entry
- Part Numbers: 2816498, 2816499, 2816500, 2816501, 2816502
Buy the Ryu Platinum Resistance Pt100 Probe with Terminal Head – Reliable Industrial Temperature Sensor for Process Applications
Order the Ryu Platinum Resistance Pt100 Probe with Terminal Head today to ensure accurate temperature measurement in demanding environments. Designed with a robust stainless steel stem and weatherproof aluminium alloy head, this probe offers excellent durability and reliable performance from -50°C to +450°C. Its versatile design includes options with or without a 1/2" BSP parallel process connection, making installation flexible for various industrial applications. Trust Ryu’s quality sensors to enhance your process control solutions effectively.
Buy Ryu Platinum Resistance Pt100 Probe with Terminal Head now and experience unmatched durability and precise temperature measurement for industrial processes.
Frequently Asked Questions
Where can I buy LABFACILITY XF1103FAR?
You can click on the BUY or RFQ button to purchase XF1103FAR from an authorized LABFACILITY distributor.
How do I troubleshoot issues or seek technical support for part XF1103FAR?
You can download the XF1103FAR datasheet or visit the LABFACILITY website for support.
Who is the manufacturer of XF1103FAR?
LABFACILITY
