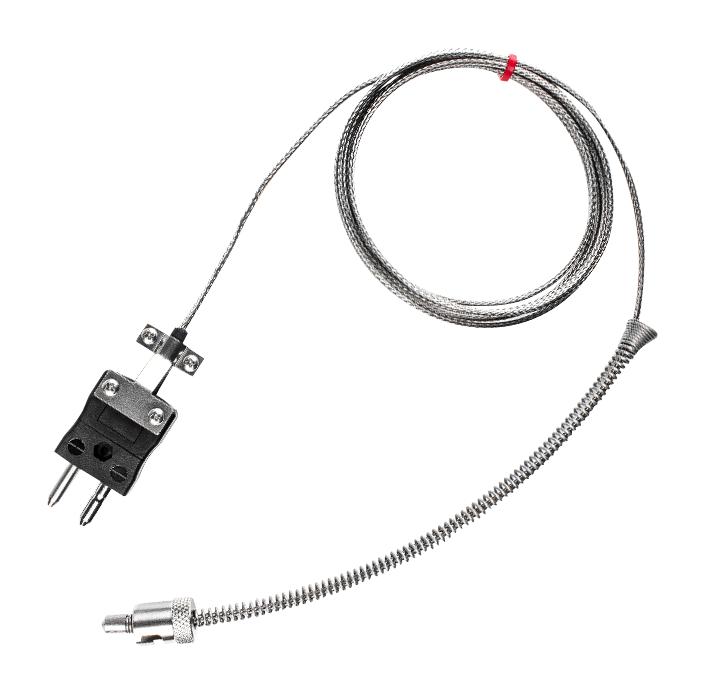

LABFACILITY XF1191FAR Industrial Thermocouple
The adjustable bayonet thermocouple is designed for reliable temperature measurement in industrial environments. It features a 6.0mm diameter tip, flexible stainless steel overbraid, and glassfibre insulated lead, rated up to 350°C with short periods up to 400°C. Available in Type J or K, it has a 170mm spring with adjustable fixing cap, fitted with cable clamps and a standard thermocouple plug. Suitable for applications requiring precise temperature monitoring in manufacturing and process control settings, though not ideal for fluid environments.
LABFACILITY XF1191FAR Industrial Thermocouple Specifications:
- Type: J or K thermocouple
- Tip Diameter: 6.0mm
- Lead Material: Glassfibre insulated with stainless steel overbraid
- Lead Length: 3 meters for Type K, 2 meters for Type J
- Rated Temperature: 350°C, short periods up to 400°C
- Spring Length: 170mm with adjustable fixing cap (11.5mm I.D. single slot)
- Cable Clamps: Included
- Plug: Standard thermocouple plug
- Insulation Rating: -60°C to 350°C (short periods up to 400°C)
- Tolerance: Class 2 to IEC-584
- Colour coding: IEC-584-3
- Application Suitability: Precise temperature measurement, not for fluid contact
Buy the Labfacility XF1191FAR – Reliable Thermocouple for Industrial Applications
Order the Labfacility XF1191FAR adjustable bayonet thermocouple online today and benefit from its high-temperature resistance and reliable measurement capabilities. Perfect for manufacturing, process control, and industrial environments requiring precise thermal monitoring. Equipped with stainless steel braid and glassfibre insulation, it withstands temperatures up to 350°C, with short periods up to 400°C. Includes cable clamps, standard plug, and an adjustable fixation system for versatile installation, ensuring accuracy and durability in demanding applications.
Buy Labfacility XF1191FAR adjustable bayonet thermocouple now and ensure precise temperature measurement in your industrial processes with high durability.
Frequently Asked Questions
Where can I buy LABFACILITY XF1191FAR?
You can click on the BUY or RFQ button to purchase XF1191FAR from an authorized LABFACILITY distributor.
How do I troubleshoot issues or seek technical support for part XF1191FAR?
You can download the XF1191FAR datasheet or visit the LABFACILITY website for support.
Who is the manufacturer of XF1191FAR?
LABFACILITY
