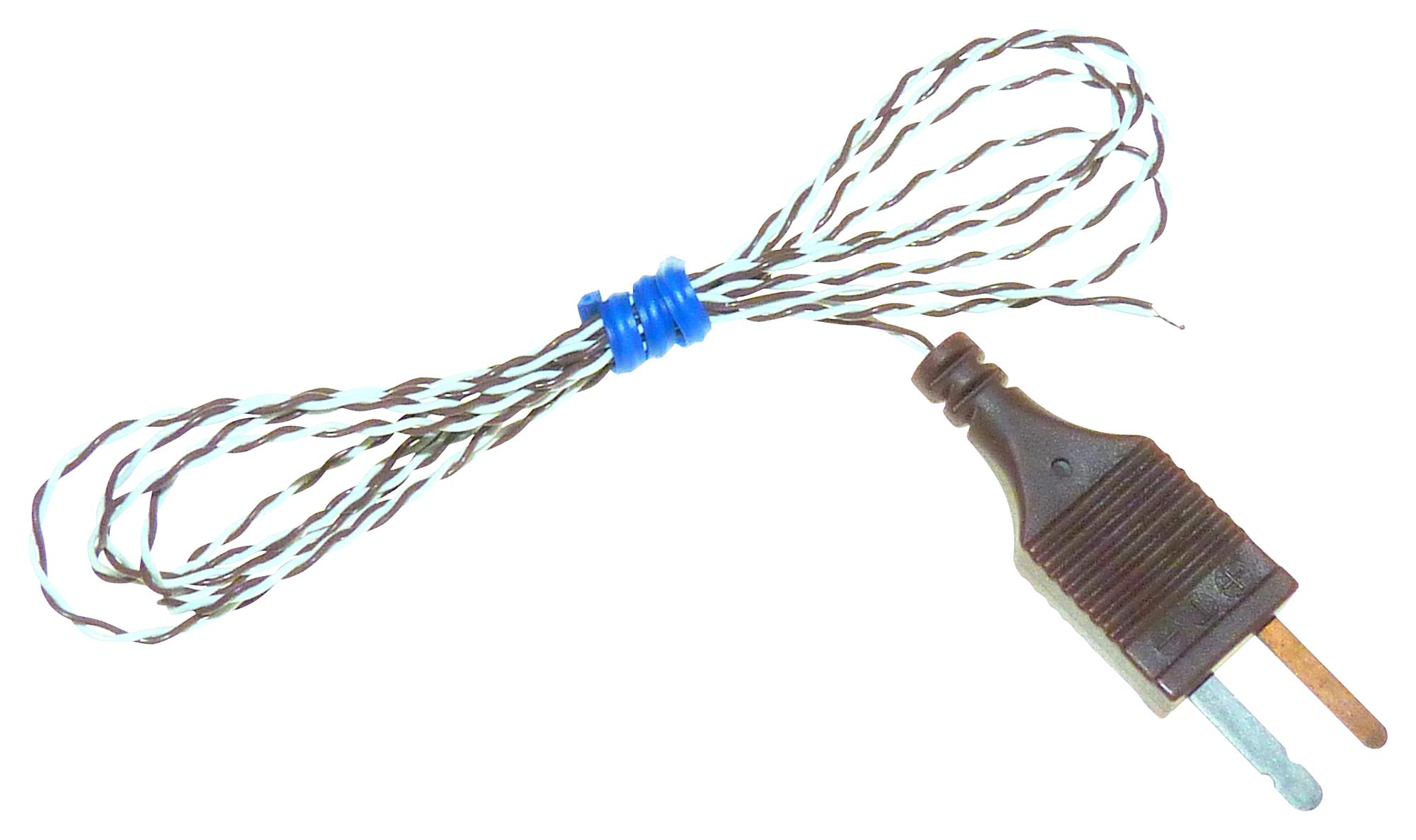

LABFACILITY XF1207FAR Thermocouple
IEC Exposed Welded Tip Thermocouples with Moulded Thermocouple Plug are ideal for accurate temperature measurement in test and development applications. Featuring fast response welded exposed junctions, these thermocouples come with 1-meter Teflon® PFA insulated twin-twisted leads, and a water-resistant miniature flat pin plug. Suitable for K, J, and T types, they operate across a temperature range of -75°C to +250°C, with IEC Class 1 tolerance and color coding per IEC 584-3 for reliable, precise thermal readings in harsh environments.
LABFACILITY XF1207FAR Thermocouple Specifications:
- Type: K, J & T thermocouples
- Response: Fast response, welded exposed junction
- Lead Length: 1 meter
- Insulation: Teflon® PFA
- Conductors: 1/0.2mm twin-twisted
- Termination: Moulded-on miniature flat pin plug (water resistant)
- Temperature Range: -75°C to +250°C
- Tolerance: IEC 584 Class 1
- Color Code: IEC 584-3
- Wiring: Positive and negative tail wires
- Welded tip: Exposed junction design
- Application: Test & development
- Certifications: IEC Ex
- Order Codes: XF-1206-FAR, XF-1205-FAR, XF-1207-FAR
Buy the Labfacility XF1207FAR – Reliable Thermocouple for Industrial Applications
Purchase Labfacility IEC Exposed Welded Tip Thermocouples online today for precise temperature measurement in testing and industrial environments. These thermocouples feature welded exposed junctions for fast response and reliable readings. With 1-meter Teflon® insulated twin-twisted leads and a water-resistant miniature flat pin plug, they are suitable for K, J, and T types across a temperature range of -75°C to +250°C. Ideal for development and testing, these thermocouples meet IEC Class 1 standards ensuring consistent performance in harsh conditions.
Buy Labfacility XF1207FAR thermocouples now and experience unmatched temperature accuracy with water-resistant miniature plugs.
