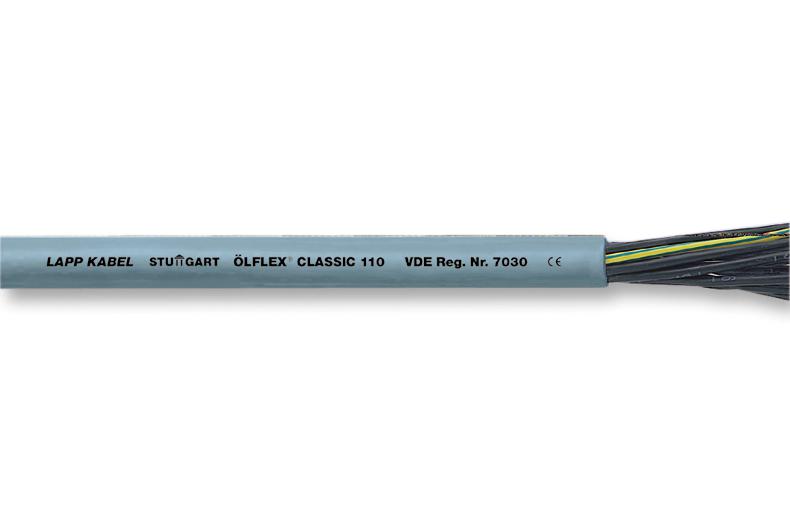

Lapp 1119854 Connecting and Control Cable
The LAPP OLFLEX CLASSIC 110 cable is a versatile connecting and control cable approved by VDE. It's designed for flexible use and fixed installations in various environments, including dry, damp, and wet rooms. The cable is suitable for applications such as controlling machine tools, production lines, and measuring/regulating units. It's resistant to acids, caustics, and certain oils at room temperature and can be freely moved without forced guidance or tensile stress. Complies with EC directive 73/23/EEC (low voltage directive).
Lapp 1119854 Connecting and Control Cable Specifications:
- Conductor: Bare copper, fine wire strand in accordance to IEC 60 228, VDE 0295, class 9
- Design: HD 21.13S1, VDE 0281-13, Core insulation LAPP special PVC compound P8/1
- Identification: Black cores with white numbers, with or without green/yellow ground conductor
- Outer Sheath: PVC compound TM2 in acc. to VDE 0207 part 5
- Nominal Voltage: 300 / 500 V
- Test Voltage: 4000 V AC
- Temp. Range (Flexible Use): -5 up to +70°C
- Temp. Range (Fixed Installation): -40 up to +80°C
- Min. Bending Radius (Flexible Use): 15 x cable diameter
- Min. Bending Radius (Fixed Installation): 4 x cable diameter
- Flame Retardancy: IEC 60 332.1, VDE 0482 part 265-2-1
- Approvals: VDE - Reg. No. 7030
- EC Directive: 73/23/EEC (low voltage directive)
