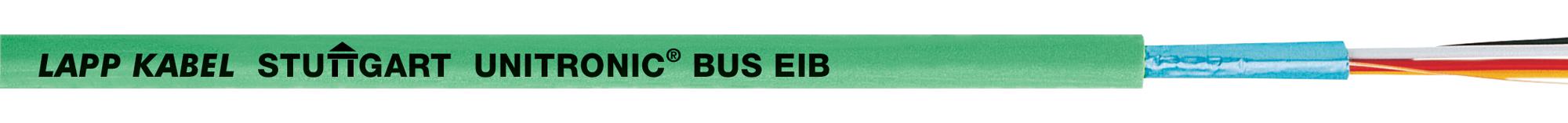

Lapp 2170240 Bus EIB Cable
The LAPP UNITRONIC® BUS EIB cable is a specialized data cable designed for use in building automation systems. It supports EIB and KNX communication protocols, facilitating the control of various building functions such as lighting, heating, air conditioning, ventilation, energy management, blinds, and locking systems. The cable's construction includes a solid bare copper conductor, twisted pair configuration, and aluminum-laminated plastic foil screening for enhanced signal integrity. It is suitable for both fixed and flexible installations in diverse environments, contributing to efficient and reliable building management.
Lapp 2170240 Bus EIB Cable Specifications:
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
- Mutual capacitance: max. 100 nF/km
- Peak operating voltage: 250 V
- Conductor resistance: max. 73.2 ohm/km
- Minimum bending radius: 10 x outer diameter
- Test voltage Core/core: 4000 V
- Temperature range: -30°C to +70°C
- Outer diameter: 6.6 mm
- Copper index: 21 kg/km
- Weight: 54 kg/m
- Number of pairs and mm or mm² per conductor: 2 x 2 x 0.8
- Halogen-free: Yes
