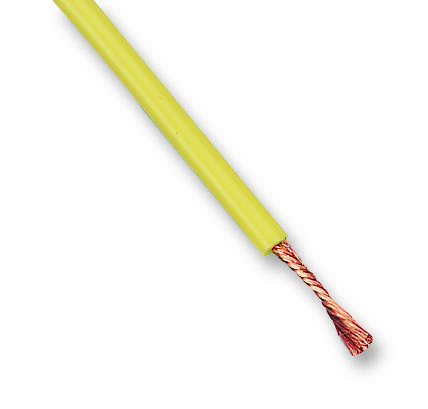

Lapp 4520111 Harmonized Hook-up Wire
The Lapp ÖLFLEX harmonized hook-up wire is a versatile solution for wiring electronic and electrical equipment destined for export to Europe. Constructed with finely stranded bare copper conductors and PVC insulation, this wire offers flexibility and durability. It is approved for European standards and available in a wide range of colors and AWG sizes, from 22 AWG to 480 KCMIL. Common applications include panel and machine wiring, medical equipment, wire bundling, and MRO replacement. The wire's flexibility, embossed cable marking option, and wide AWG range make it a reliable choice for diverse industrial needs.
Lapp 4520111 Harmonized Hook-up Wire Specifications:
- Conductors: Finely stranded bare copper
- Insulation: PVC
- Recommended Applications: Panel and machine wiring for export usage; electronic equipment; medical equipment; wire bundling; MRO replacement or European equipment and machinery
- Color Options: 14 standard color options
- Approval: <HAR> approval
- AWG Range: 22 AWG to 480 KCMIL
- Stranding: Flexible stranding vs. solid core and 7-strand
- Cable Marking: Embossed cable marking available upon request
- Temperature Range: -30°C to +80°C
- Color Code: 00: Green/Yellow, 07: Violet, 01: Black, 08: Pink, 02: Blue, 09: Orange, 03: Brown, 10: Transparent*, 04: Red, 11: Yellow*, 05: White, 12: Green*, 06: Gray, 14: Dark blue
- Nominal Voltage: H05V-K: 300/500V, H07V-K: 450/750V
- Test Voltage: H05V-K: 2000V, H07V-K: 2500V
- Approvals: <HAR> H05V-K & H07V-K CE & RoHS
- Conductor Stranding: Class 5 fine wire
