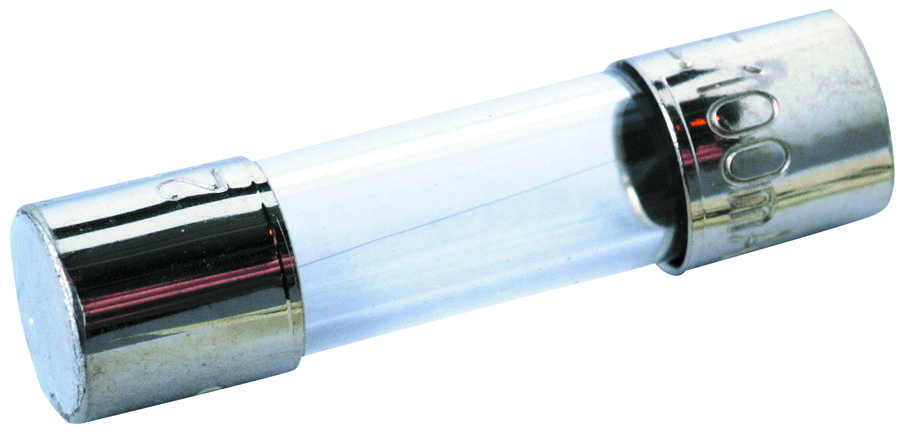

Littelfuse 0213016MXP Time-Lag Fuse
The 213 Series 5x20 mm Time-Lag Fuse offers reliable overcurrent protection with a glass body, nickel-plated brass caps, and tin-plated copper leads. Designed to IEC 60127-2 standards, it features a maximum voltage of 250VAC, a current rating from 0.2A to 6.3A, and a temperature range of -55°C to 125°C. This fuse is suitable for appliances and internal circuits, providing effective safeguarding for electronic components. Its robust construction ensures long-lasting durability and compliance with global safety regulations, making it ideal for diverse industrial and consumer applications.
Littelfuse 0213016MXP Time-Lag Fuse Specifications:
- Body Material: Glass
- Cap Material: Nickel-plated brass
- Leads: Tin-plated Copper
- Dimensions: 5 x 20 mm
- Operating Temperature Range: -55°C to 125°C
- Voltage Rating: 250VAC
- Current Ratings: 0.2A to 6.3A
- Maximum Voltage Drop: 150mV
- Maximum Power Dissipation: 1.6W at 1.5In
- Cold Resistance: 0.0551 ohms
- Standards: IEC 60127-2
- Design: Time-Lag (slow-blow)
- Markings: Brand logo, current, voltage, and approval marks
- Packaging Options: Bulk, tape and reel
Buy the Littelfuse Series 213 Time-Lag Fuse: 0213016MXP
Purchase the Littelfuse Time-Lag Fuse online today to ensure reliable overcurrent protection for your appliances and circuits. Designed with a durable glass body, nickel-plated brass caps, and tin-plated copper leads, this fuse meets IEC standards for global applications. Its slow-blow design safeguards components against power surges and overcurrent conditions effectively. Suitable for various industrial and electronic uses, it offers a maximum voltage of 250VAC, current ratings from 0.2A to 6.3A, and operates reliably over a temperature range of -55°C to 125°C. Order now to enhance safety and protect your equipment efficiently.
Get Littelfuse 0213016MXP today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy Littelfuse 0213016MXP?
You can click on the BUY or RFQ button to purchase 0213016MXP from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0213016MXP?
You can download the 0213016MXP datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0213016MXP?
Littelfuse
