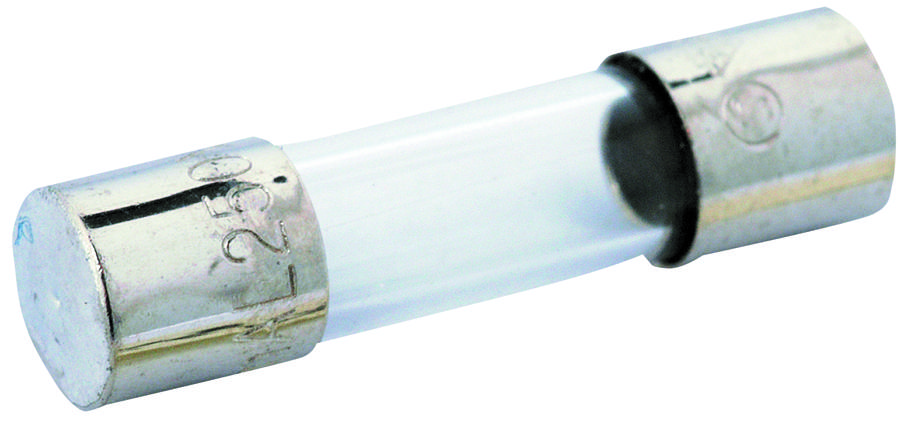

Littelfuse 0217004HXP Fast-Acting Cartridge Fuse
The Littelfuse 0217004.HXP is a 5x20mm fast-acting glass body cartridge fuse designed to IEC specifications. It is RoHS compliant and meets IEC 60127-2 standards for fast-acting fuses. This fuse is used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits. It is available in cartridge and axial lead form globally and offers a range of ampere ratings from 0.032A to 15A, suitable for various applications requiring reliable overcurrent protection.
Littelfuse 0217004HXP Fast-Acting Cartridge Fuse Specifications:
- Series: 217
- Size: 5 × 20 mm
- Fuse Type: Fast-Acting
- Body Material: Glass
- Cap Material: Nickel-plated brass
- Lead Material: Tin-plated Copper
- RoHS Compliant: Yes
- Agency Approvals: NBK090205-E10480A, NBK120802-E10480C, NBK090205-E10480B, NBK120802-E10480D, 2002010207007600, SU05001-3004, SU05001-2005, SU05001-2006, SU05001-2007, E10480, 29862, 1517221
- Ampere Range: 1A – 15A
- Operating Temperature: –55°C to +125°C
- Interrupting Rating: Varies by Ampere Rating (see datasheet)
- Voltage Drop: Varies by Ampere Rating (see datasheet)
- Soldering Parameters: Wave Soldering: Preheat 100-150°C, Solder Pot 260°C max, Dwell Time 2-5 seconds. Hand Soldering: 350°C +/- 5°C, 5 seconds max.
Buy the 0217004.HXP LITTELFUSE Fast-Acting Cartridge Fuse | myMectronic
Purchase the LITTELFUSE 0217004.HXP fuse securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 0217004HXP?
You can click on the BUY or RFQ button to purchase 0217004HXP from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0217004HXP?
You can download the 0217004HXP datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0217004HXP?
Littelfuse
