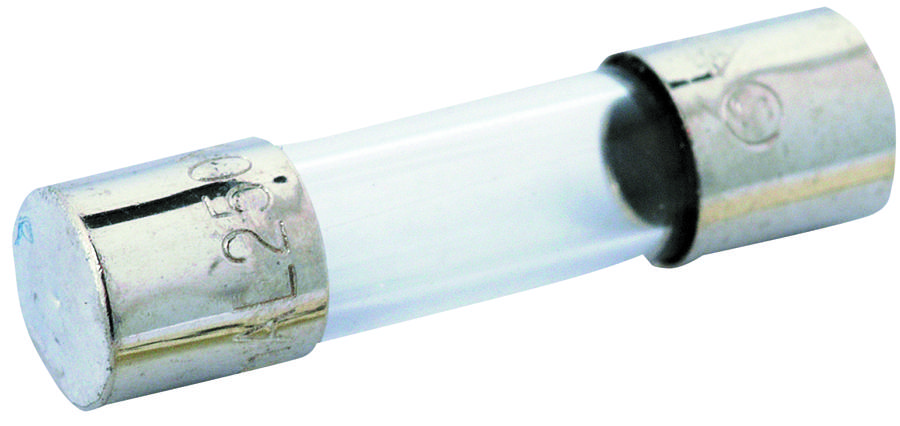

Littelfuse 0217005HXP Fast-Acting Cartridge Fuse
The Littelfuse 0217005.HXP is a 5x20mm fast-acting glass body cartridge fuse designed to IEC specifications. This fuse is RoHS compliant and meets IEC 60127-2 Sheet 2 standards. It's ideal for providing individual protection for components or internal circuits in appliance and utilization equipment, offering reliable overcurrent protection in a compact form factor. Available in various ampere ratings, it's a versatile solution for a wide range of applications.
Littelfuse 0217005HXP Fast-Acting Cartridge Fuse Specifications:
- Series: 217
- Size: 5 x 20 mm
- Fuse Type: Fast-Acting
- Body Material: Glass
- Cap Material: Nickel-plated brass
- Lead Material: Tin-plated Copper
- IEC Specification: IEC 60127-2 Sheet 2
- RoHS Compliant: Yes
- Agency Approvals: NBK090205-E10480A, NBK120802-E10480C, NBK090205-E10480B, NBK120802-E10480D, 2002010207007600, SU05001-3004, SU05001-2005, SU05001-2006, SU05001-2007, E10480, 29862, 1402480, 40014645, 40016647, KM41462
- Ampere Range: 0.032A – 15A
- Operating Temperature: -55°C to +125°C
- Interrupting Rating: Varies by Ampere Rating (See Datasheet)
- Voltage Rating: 250V
- Resistance: Varies by Ampere Rating (See Datasheet)
- Soldering Recommendations: Wave Soldering: Preheat 100-150°C, Solder Pot 260°C max, Dwell Time 2-5 seconds. Hand Soldering: 350°C +/- 5°C, 5 seconds max.
Buy the 0217005.HXP LITTELFUSE Fast-Acting Cartridge Fuse | myMectronic
Purchase the Littelfuse 0217005.HXP fuse securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 0217005HXP?
You can click on the BUY or RFQ button to purchase 0217005HXP from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0217005HXP?
You can download the 0217005HXP datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0217005HXP?
Littelfuse
