Littelfuse 0217100MXP Fast-Acting Cartridge Fuse

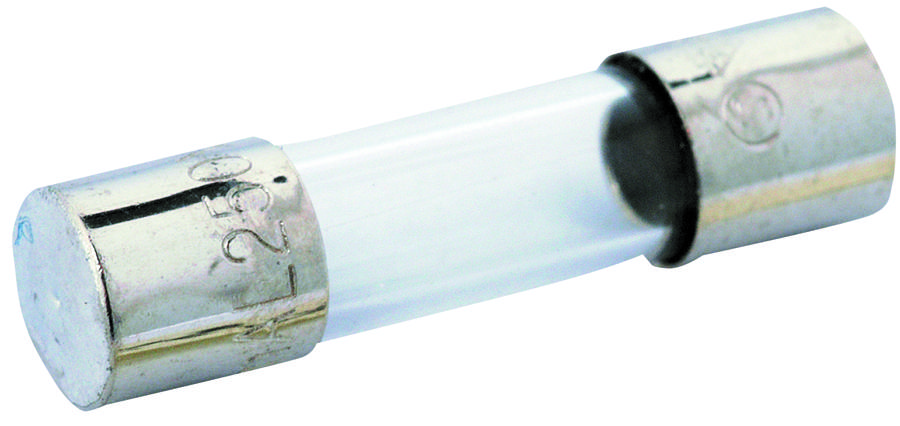

The Littelfuse 0217.100MXP is a 5x20mm fast-acting glass body cartridge fuse designed to IEC specifications. This fuse is RoHS compliant and meets IEC 60127-2 Sheet 2 standards. It's commonly used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits. Available in various ampere ratings, it offers reliable overcurrent protection for a wide range of applications.
Authorized Distributors
Source:RS Americas, Inc
Part No:0217.100MXP
Stock:4343
Inv Date:05-28-2026
Price: Unit price: $1.58
Buy/RFQ:
Source:Onlinecomponents.com
Part No:0217.100MXP
Stock:0
Inv Date:05-28-2026
Price: Unit price: $0.964
Buy/RFQ:
Source:Master Electronics
Part No:0217.100MXP
Stock:0
Inv Date:05-28-2026
Price: Unit price: $0.964
Buy/RFQ:
Source:Future Electronics Corporate
Part No:0217.100MXP
Stock:600
Inv Date:05-28-2026
Price: Unit price: $0.74
Buy/RFQ:
Littelfuse 0217100MXP Fast-Acting Cartridge Fuse Specifications:
- Series: 217
- Fuse Type: Fast-Acting
- Size: 5 x 20 mm
- Body Material: Glass
- Cap Material: Nickel-plated brass
- Lead Material: Tin-plated Copper
- Agency Approvals: NBK090205-E10480A, NBK120802-E10480C, NBK090205-E10480B, NBK120802-E10480D, 2002010207007600, SU05001-3004, SU05001-2005, SU05001-2006, SU05001-2007, E10480, 29862, 1402480, 40014645, 40016647, KM41462
- Ampere Range: 0.032A – 15A
- Interrupting Rating: Varies by Ampere Rating (see datasheet)
- Operating Temperature: -55°C to +125°C
- Standards Compliance: IEC 60127-2 Sheet 2
- RoHS Compliant: Yes
- Soldering Recommendations: Wave Soldering: Preheat 100-150°C, Solder Pot 260°C max, Dwell Time 2-5 seconds. Hand Soldering: 350°C +/- 5°C, 5 seconds max.
