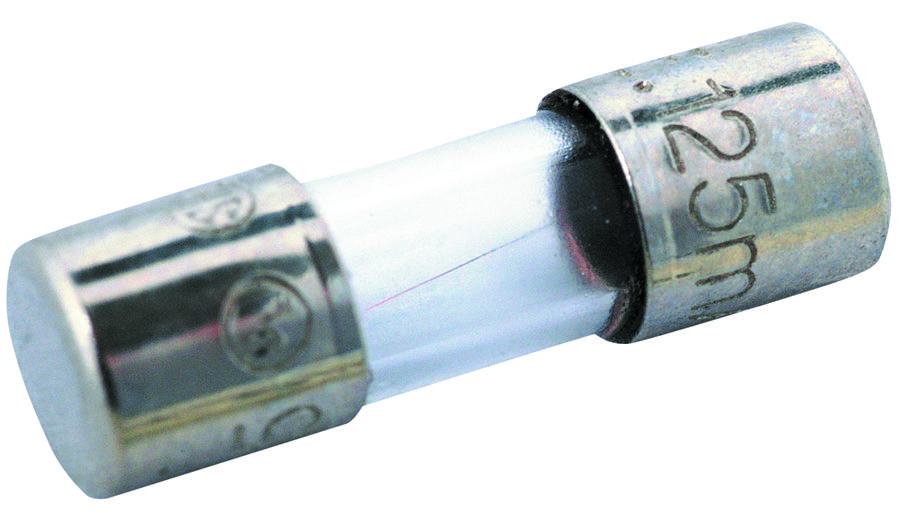

Littelfuse 0225001HXP Fast Acting Axial Fuse
The LITTELFUSE 224/225 Series Fast-Acting Fuses are designed for supplementary protection in appliance and utilization equipment. Available in both axial lead and cartridge configurations, these fuses provide performance comparable to 3AG fuses while minimizing space requirements. They are RoHS compliant and feature various agency approvals, making them suitable for a wide range of applications requiring reliable overcurrent protection. The fuses are constructed with a glass body, nickel-plated brass cap, and tin-plated copper leads, ensuring durability and optimal performance.
Littelfuse 0225001HXP Fast Acting Axial Fuse Specifications:
- Ampere Range: 0.375A - 10A
- Agency Approvals: E10480, 29862, NBK200405-E10480A/B/C/D, NBK110512-E10480A/B, NBK210405-E10480E/F
- Body Material: Glass
- Cap Material: Nickel-plated brass
- Lead Material: Tin-plated Copper
- Terminal Strength: MIL-STD-202, Method 211
- Solderability: MIL-STD-202 Method 208
- Product Marking: Brand logo, current and voltage ratings, series and agency approval marks
- Operating Temperature: –55ºC to 125ºC
- Thermal Shock: MIL-STD-202, Method 107
- Vibration: MIL-STD-202, Method 201
- Humidity: MIL-STD-202, Method 103
- Salt Spray: MIL-STD-202, Method 101
- Opening Time (100%): 4 hours
- Opening Time (135%): 1 hour
- Opening Time (200%): 1 sec.
