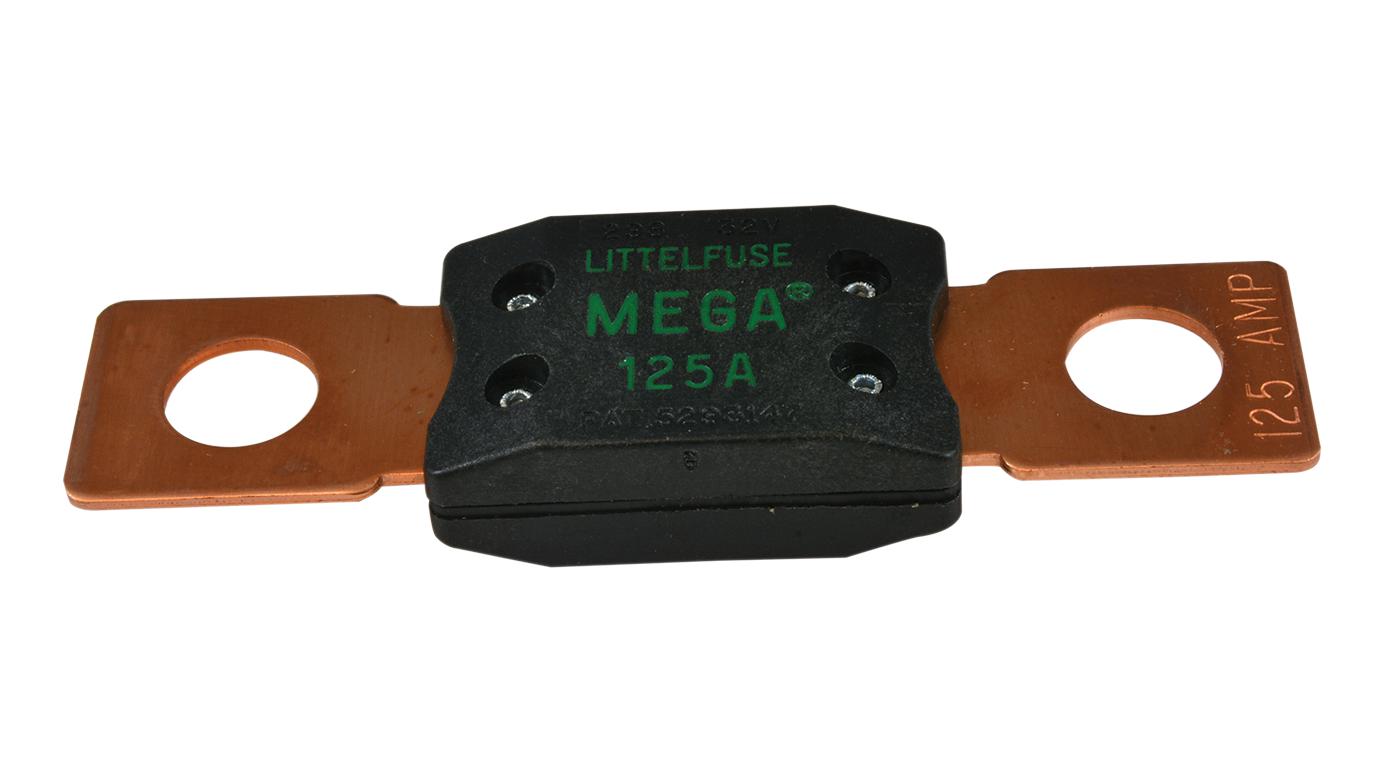

Littelfuse 0298125ZXEH MEGA Fuse Rated 32V
The Littelfuse MEGA Fuse is a patented, high-current circuit protection device designed to handle currents up to 500A. Featuring Diffusion Pill Technology, it offers time-delay characteristics and is well-suited for battery and alternator protection, as well as applications involving heavy-gauge cables requiring ultra-high current protection. The fuse is designed and patented by Littelfuse and provides reliable protection in demanding automotive and industrial environments.
Littelfuse 0298125ZXEH MEGA Fuse Rated 32V Specifications:
- Interrupting Rating: 2000A @ 32 VDC
- Voltage Rating: 32 VDC
- Operating Temperature Range: -40˚C to + 125˚C
- Terminals: Copper (Ag available)
- Mounting Torque: M6 or M8 bolts available 8-14 Nm (M6) / 12-18 Nm (M8)
- Series: 0298xxx.TXN, 0298xxx.ZXH, 0298xxx.ZXEH
- Pack Size: 10, 500
- Current Rating: Up to 500A
- Cold Resistance: 0.423 m Ω
- Voltage Drop: 80 mV
- A²s: 57800
- Kennfarbe: Color
- Typ. Spannungsfall: Typ. Voltage Drop
- Kaltwiderstand: Cold Resistance
