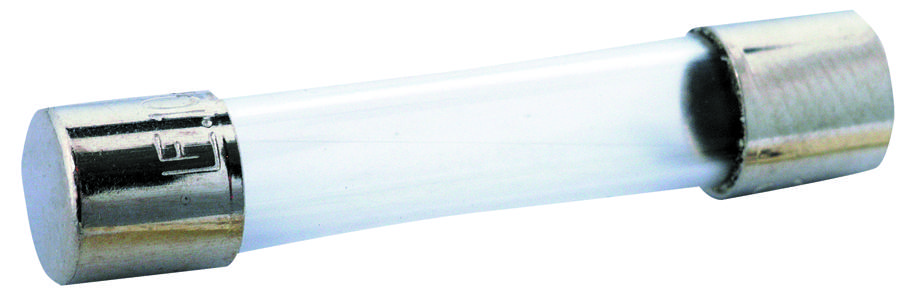

Littelfuse 0312500HXP Fast Acting Fuse
The Littelfuse 312/318 Series Fast-Acting Fuse is designed to offer reliable performance and cost-effective circuit protection for a wide range of applications. Available in both cartridge and axial lead formats, this fuse is suitable for use in appliances, utilization equipment, and other applications requiring individual component or internal circuit protection. It is RoHS compliant and meets various industry standards, ensuring quality and safety.
Littelfuse 0312500HXP Fast Acting Fuse Specifications:
- Agency Approvals: E10480, 29862, NBK040205-E10480B/F, NBK040205-E10480D/H, SU05001-6008, SU05001-5005, SU05001-5006
- Ampere Range: 0.062A - 30A (312 Series), 0.062A - 10A (318 Series)
- Opening Time: 4 hours (minimum at 100% rating), 1 hour (maximum at 135% rating), 5 seconds (maximum at 0.062A - 10A), 10 seconds (maximum at 200% rating), 20 seconds (maximum at 35A)
- Body Material: Glass
- Cap Material: Nickel-plated brass
- Lead Material: Tin-plated Copper
- Terminal Strength: MIL-STD-202, Method 211, Test Condition A
- Solderability: MIL-STD-202 method 208
- Operating Temperature: –55ºC to +125ºC
- Thermal Shock: MIL-STD-202, Method 107, Test Condition B
- Vibration: MIL-STD-202, Method 201
- Humidity: MIL-STD-202, Method 103, Test Condition A
- Salt Spray: MIL-STD-202, Method 101, Test Condition B
- Cartridge Dimensions: 6.35±0.3 (.25")
- Axial Lead Dimensions: 6.985±0.3 (.275")
- Fuse Length: 31.75±1.12 (1.25") (312 Series), 32.72±1.12 (1.288") (318 Series)
- Axial Lead Length: Standard: 39.68 (1.56") , Short: 12.70 (0.50")
Buy the 0312.500HXP LITTELFUSE Fast Acting Fuse | myMectronic
Purchase the Littelfuse 0312.500HXP fuse securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 0312500HXP?
You can click on the BUY or RFQ button to purchase 0312500HXP from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0312500HXP?
You can download the 0312500HXP datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0312500HXP?
Littelfuse
