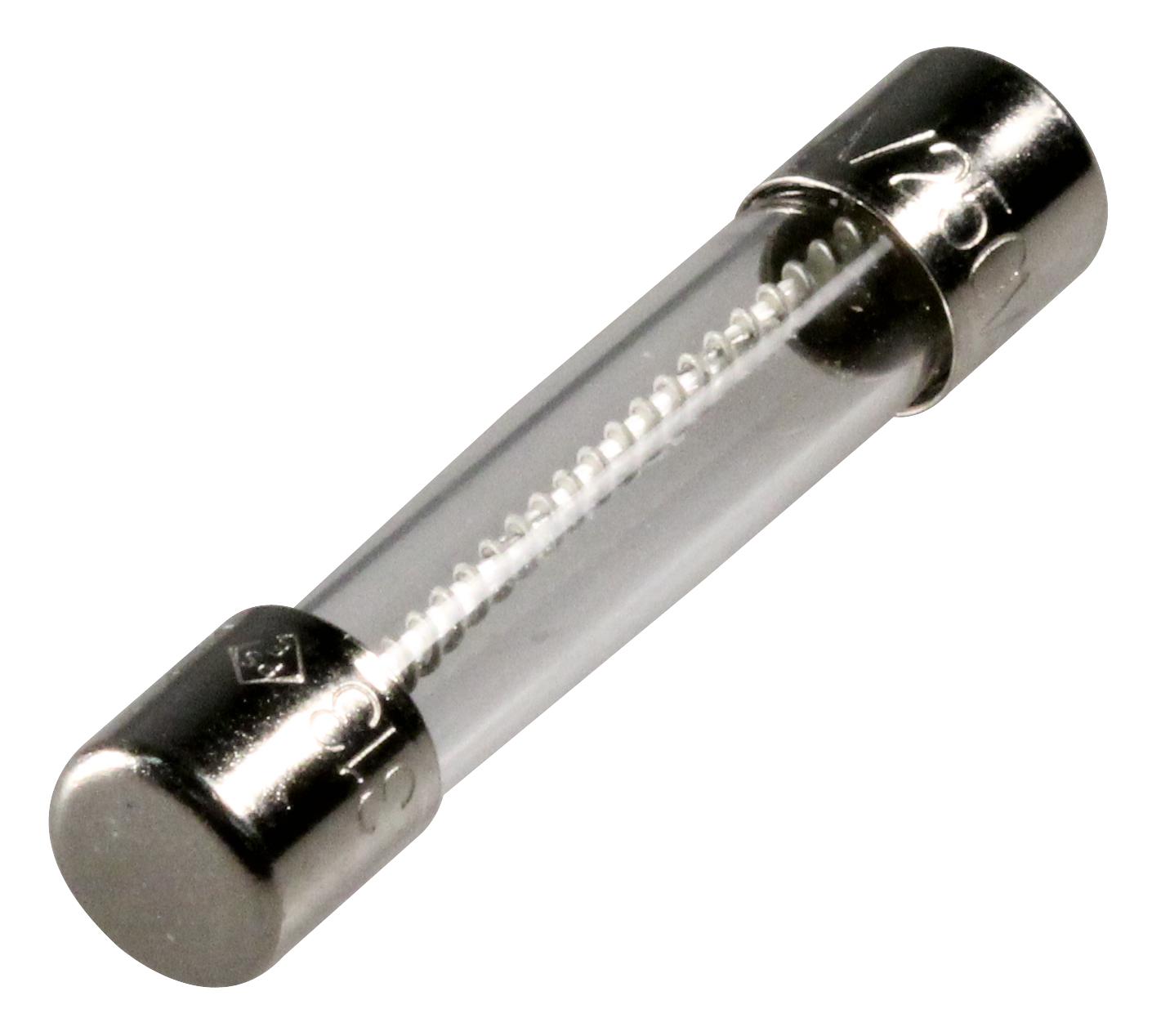

Littelfuse 0313008MXP Slo-Blo Fuse
The Littelfuse 313/315 Slo-Blo fuse is designed to meet a broad range of application requirements while offering reliable performance and cost-effective circuit protection. Its unique design, indicated by discoloration of the glass body upon opening, simplifies troubleshooting and eliminates time-consuming circuit testing. This fuse provides the same quality performance characteristics as the standard 3AG Slo-Blo fuse, making it suitable for individual protection of components or internal circuits in appliances and utilization equipment. It is available in cartridge and axial lead formats with various forming dimensions and is RoHS compliant.
Littelfuse 0313008MXP Slo-Blo Fuse Specifications:
- Agency Approvals: E10480 (0.010A - 10A/15A), 29862 (0.010A - 10A/15A), E10480 (10A - 30A), NBK040205-E10480B/F (1-5A), NBK040205-E10480D/H (6.25-10A/15A), SU05001-6004 (2.25-2.5A), SU05001-5007 (2.8A - 3.2A), SU05001-5008 (4A - 6.3A), SU05001-5009 (7A-8A)
- Body Material: Glass
- Cap Material: Nickel-plated brass
- Lead Material: Tin-plated Copper
- Operating Temperature: –55ºC to +125ºC
- Thermal Shock: MIL-STD-202, Method 107, Test Condition B (5 cycles -65°C to +125°C)
- Vibration: MIL-STD-202, Method 201
- Terminal Strength: MIL-STD-202, Method 211, Test Condition A
- Solderability: MIL-STD-202 method 208
- Interrupting Rating: 10mA – 30A (4 hours, Minimum), 10mA – 30A (1 hour, Maximum), 10mA – 15A (5 sec, Min, 30 sec, Max), 20A – 30A (5 sec, Min, 60 sec Max)
- Lead-Free: Yes
- Forming Dimensions: Various
- Application: Supplementary protection in appliance or utilization equipment
