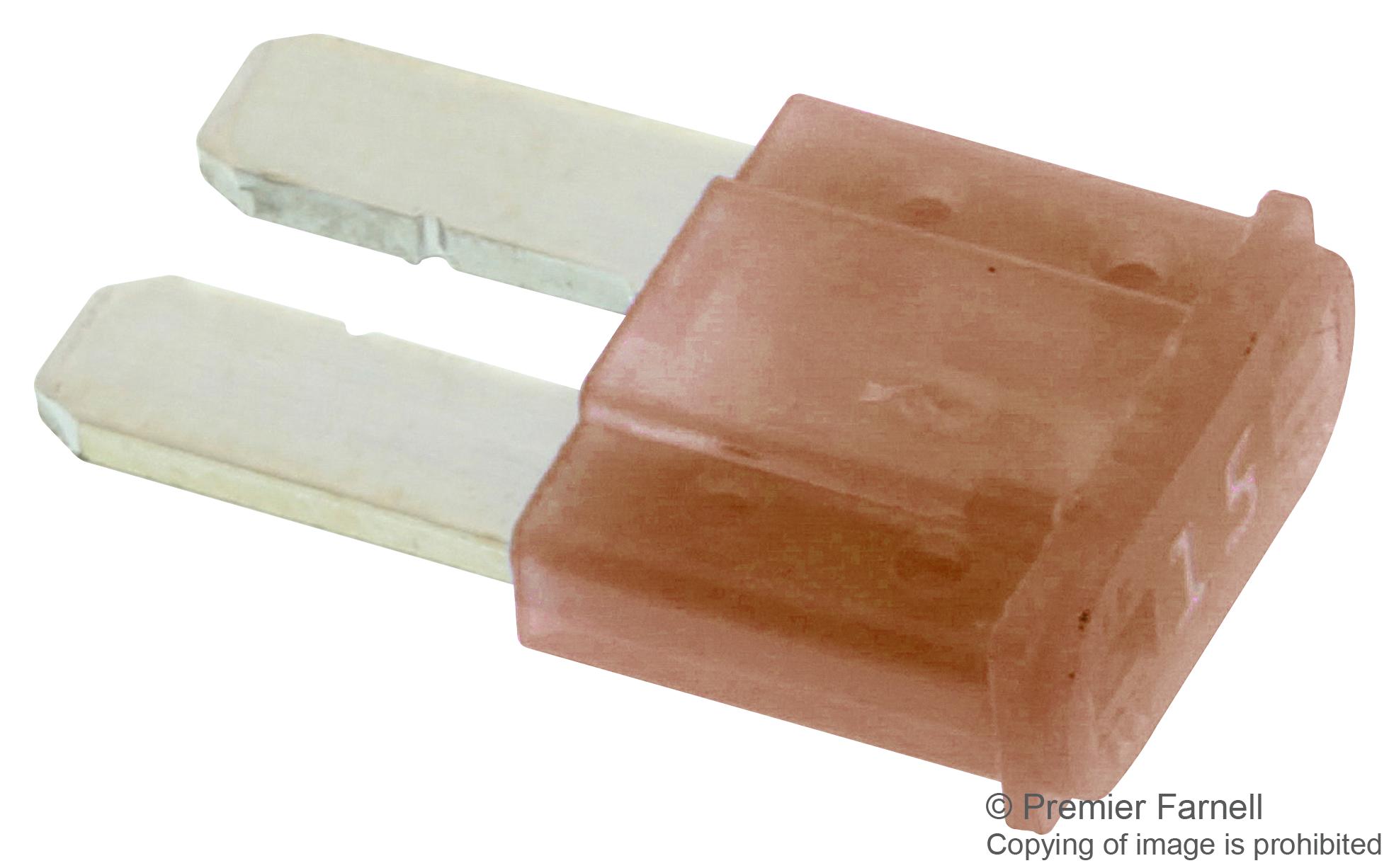

Littelfuse 0327005LXS Micro2 Blade Fuse
The LITTELFUSE MICRO2™ Blade Fuse is a compact and reliable solution for vehicle circuit protection. Its sub-miniature design allows for more circuits to be protected in a smaller space, while its ability to withstand high temperatures makes it suitable for demanding environments. Conforming to SAE 2741 and ISO 8820-3 standards, the MICRO2™ fuse provides consistent electrical, mechanical, and environmental performance. It's a recommended choice for applications requiring robust circuit protection in automotive and similar industries.
Littelfuse 0327005LXS Micro2 Blade Fuse Specifications:
- Voltage Rating: 32 VDC
- Interrupting Ratings: 1000A @ 32 VDC
- Component Level Temperature Range: -40˚C to +125˚C
- System Level Temperature Range: -40˚C to +105˚C
- Terminals: Ag plated zinc alloy
- Housing Material: PA66
- Conforms to: SAE 2741 and ISO 8820-3
- Opening Time Min: 0.30 sec
- Opening Time Max: 50 sec
- Package Size: 4000
- % of Rating: 110
Buy the 0327005.LXS LITTELFUSE Micro2 Blade Fuse | myMectronic
Purchase the LITTELFUSE 0327005.LXS Micro2 Blade Fuse securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 0327005LXS?
You can click on the BUY or RFQ button to purchase 0327005LXS from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0327005LXS?
You can download the 0327005LXS datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0327005LXS?
Littelfuse
