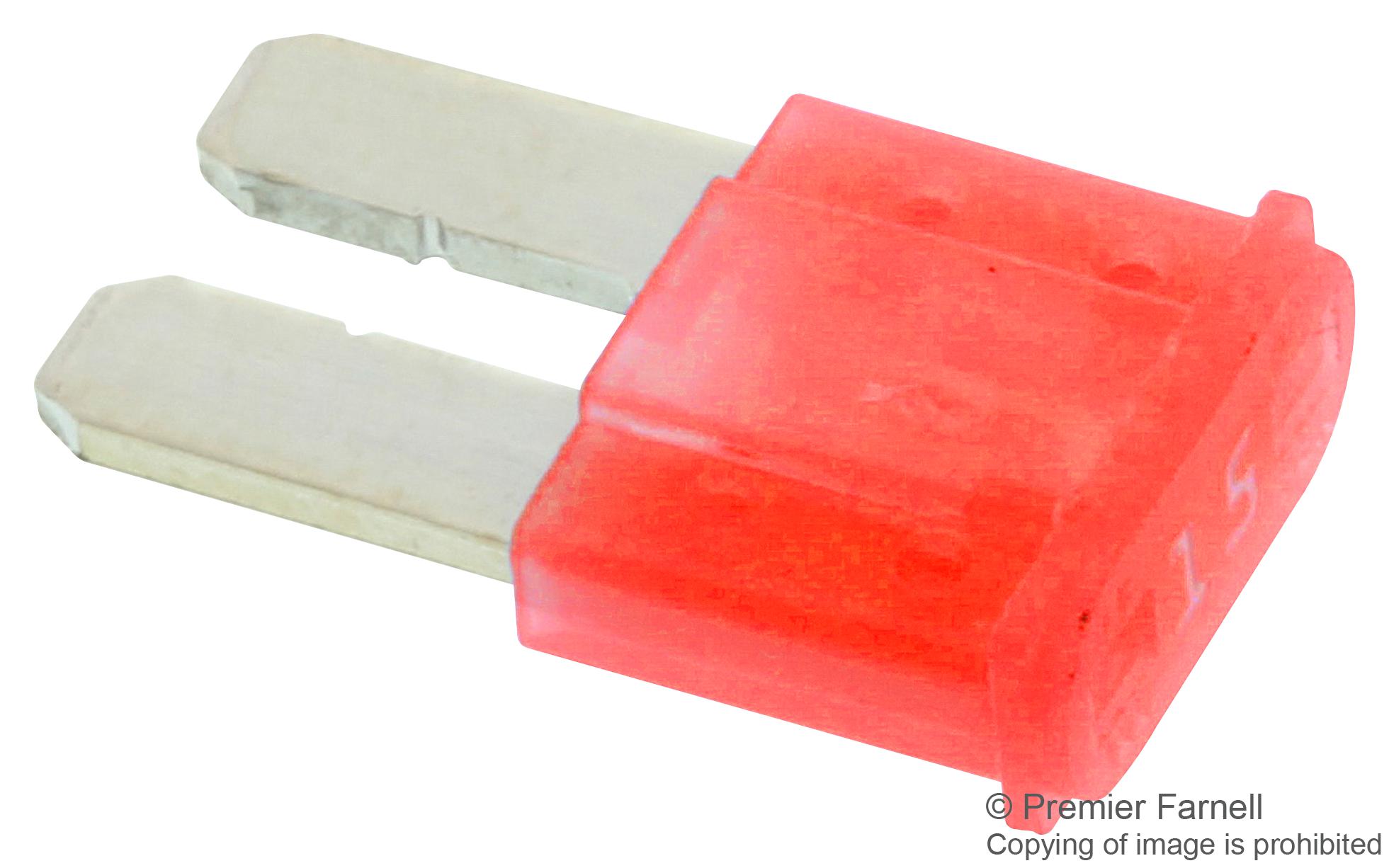

Littelfuse 0327010LXS Micro2 Blade Fuse
The LITTELFUSE MICRO2™ Blade Fuse is a compact and reliable solution for vehicle circuit protection. Its sub-miniature design allows for more circuits to be protected in a smaller space, while its ability to withstand high temperatures makes it ideal for challenging environments. Conforming to SAE 2741 and ISO 8820-3 standards, the MICRO2™ fuse offers electrical, mechanical, and environmental performance. It's a recommended choice for protecting vehicle circuits and is available in various ratings and configurations to meet specific application needs.
Littelfuse 0327010LXS Micro2 Blade Fuse Specifications:
- Voltage Rating: 32 VDC
- Interrupting Ratings: 1000A @ 32 VDC
- Component Level Temperature Range: -40˚C to +125˚C (Sn Plated), -40˚C to +105˚C (Tin Plated)
- System Level Temperature Range: -40˚C to +105˚C (Sn Plated), -40˚C to +85˚C (Tin Plated)
- Terminals: Ag plated zinc alloy (Sn plated for Sn version)
- Housing Material: PA66
- Standards Conformance: SAE 2741 and ISO 8820-3
- Opening Time: 0.30 sec / 50 sec (0327xxx.LXS)
- Package Size: 4000
- % of Rating: 110
Buy the 0327010.LXS LITTELFUSE Micro2 Blade Fuse | myMectronic
Purchase the LITTELFUSE 0327010.LXS Micro2 Blade Fuse securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 0327010LXS?
You can click on the BUY or RFQ button to purchase 0327010LXS from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0327010LXS?
You can download the 0327010LXS datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0327010LXS?
Littelfuse
