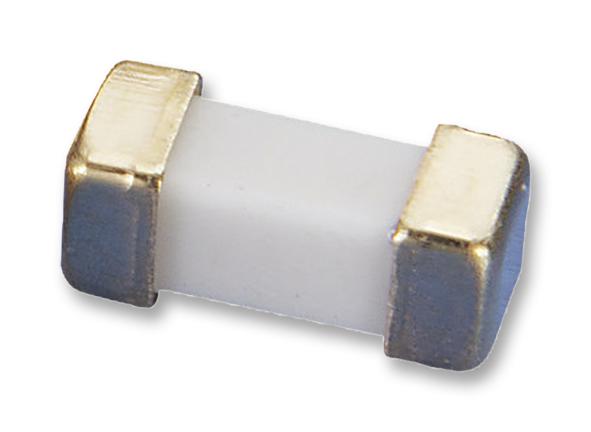

Littelfuse 0451001NRL Nano Surface Mount Fuse
The Littelfuse Nano[2] SMF fuse is a compact surface mount fuse ideal for secondary-side over-current protection in a variety of electronic devices. Its wire-in-air design and small size make it suitable for PCB applications utilizing surface mount technology. The fuse offers fast-acting performance, low-temperature de-rating, and a wide range of current ratings, making it versatile for applications such as notebook PCs, telecom systems, LCD/PDP TVs, and power supplies. It is RoHS compliant and halogen-free, ensuring environmental responsibility.
Littelfuse 0451001NRL Nano Surface Mount Fuse Specifications:
- Agency Approvals: E10480 (6.3A - 15A), LR29862 (62mA - 15A), PS NBK030205-E10480B (1A - 5A), E NBK101105-E184655 (6.3A - 10A), E10480 (62mA - 5A)
- Ampere Rating: 0.062A - 15A
- Opening Time: 1/16 –15 (4 hours), 1/16 –10 (5 sec), 12 –15 (20 sec)
- % of Ampere Rating: 100%, 1/16, 200%
- Body Material: Ceramic
- Termination Material: Gold-Plated Caps / Sn-dipped Silver Plated
- Operating Temperature: -55°C to 125°C
- Moisture Sensitivity Level: Level 1
- Insulation Resistance: 10,000 ohms minimum
- Thermal Shock: MIL-STD-202, Method 107
- Mechanical Shock: 100G’s pk amplitude, 6ms duration
- Vibration: 0.03” amplitude, 10-55 Hz
- Salt Spray: MIL-STD-202, Method 101
- Resistance to Soldering Heat: MIL-STD-202, Method 210
